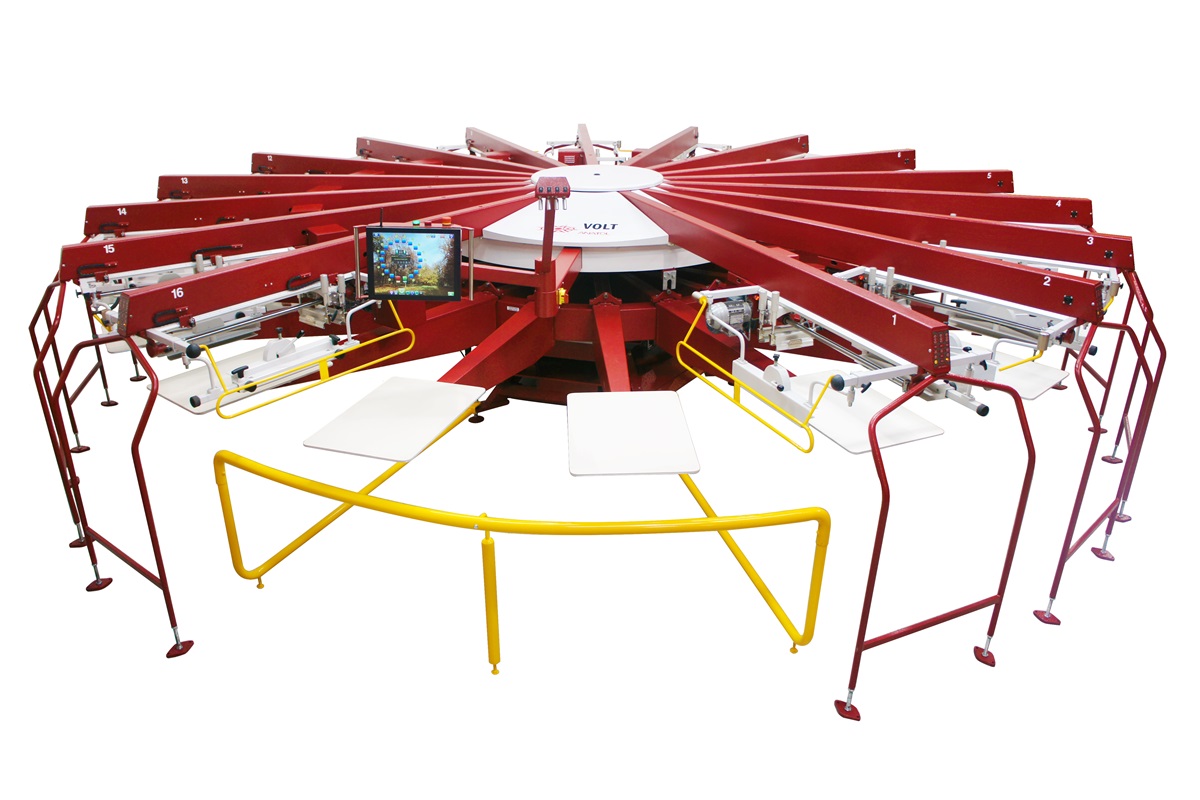

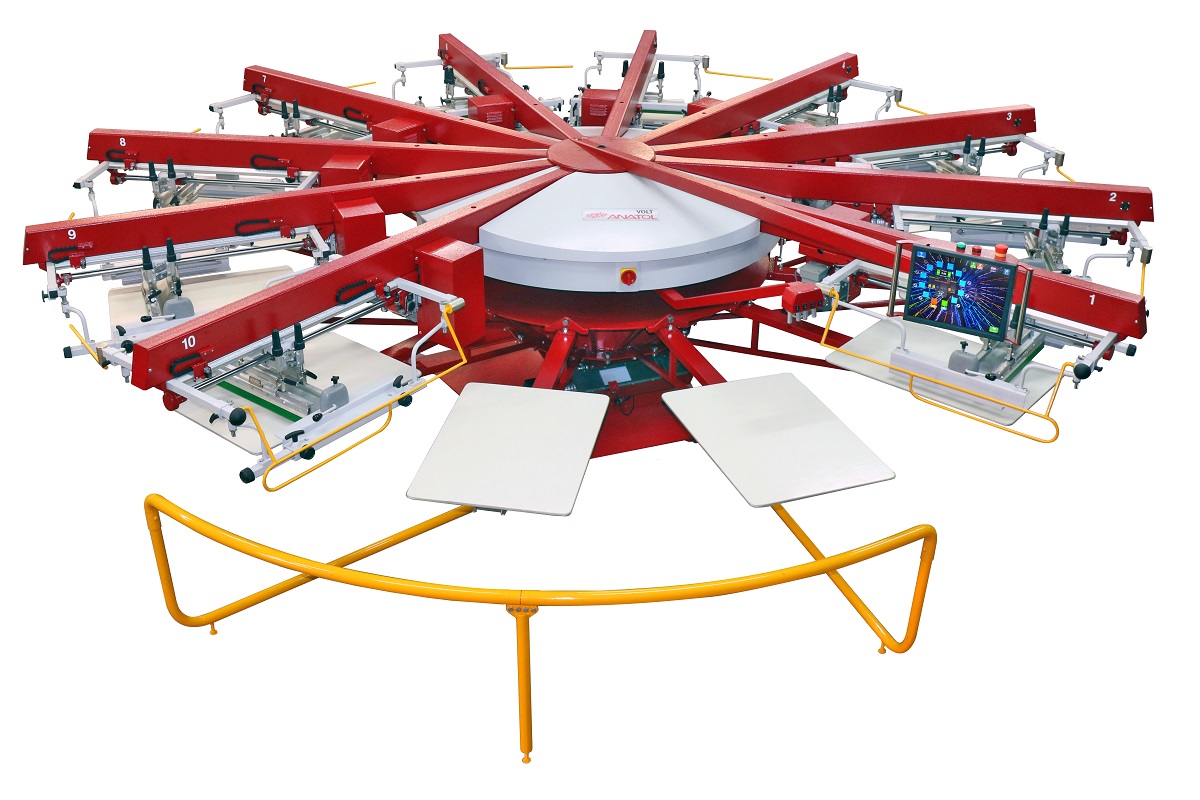

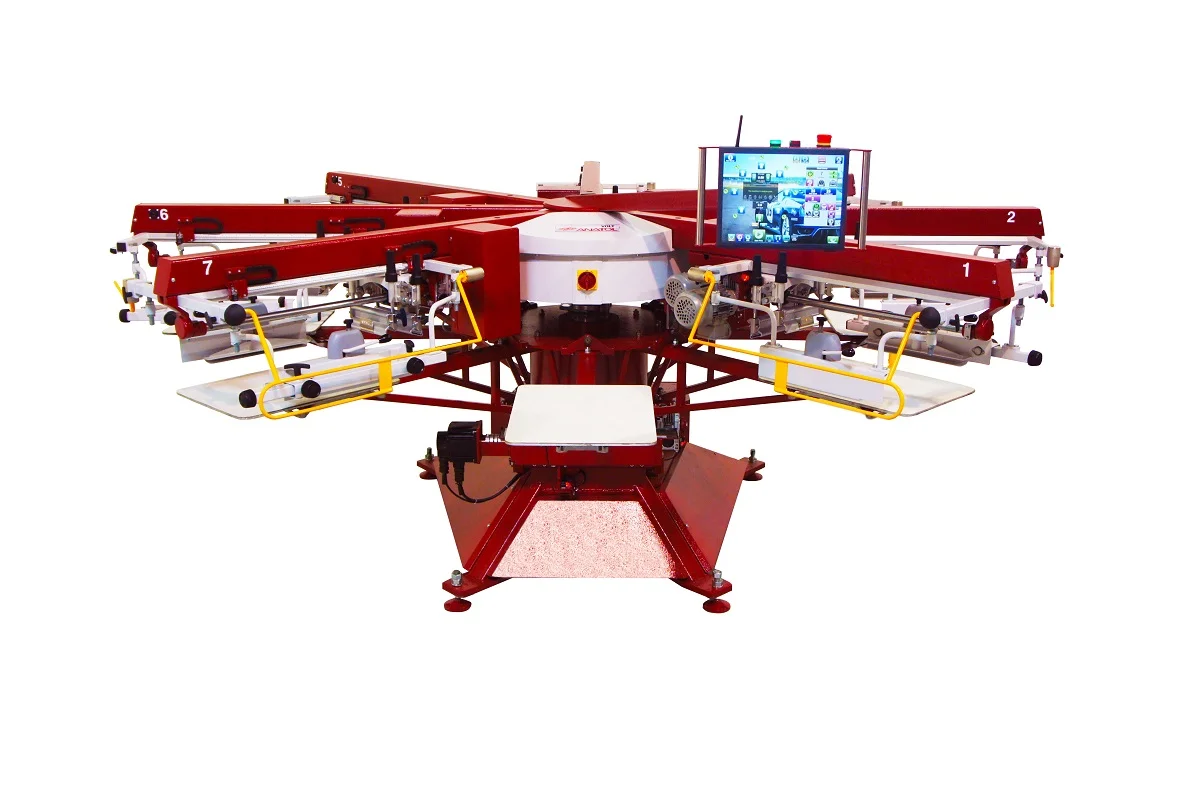

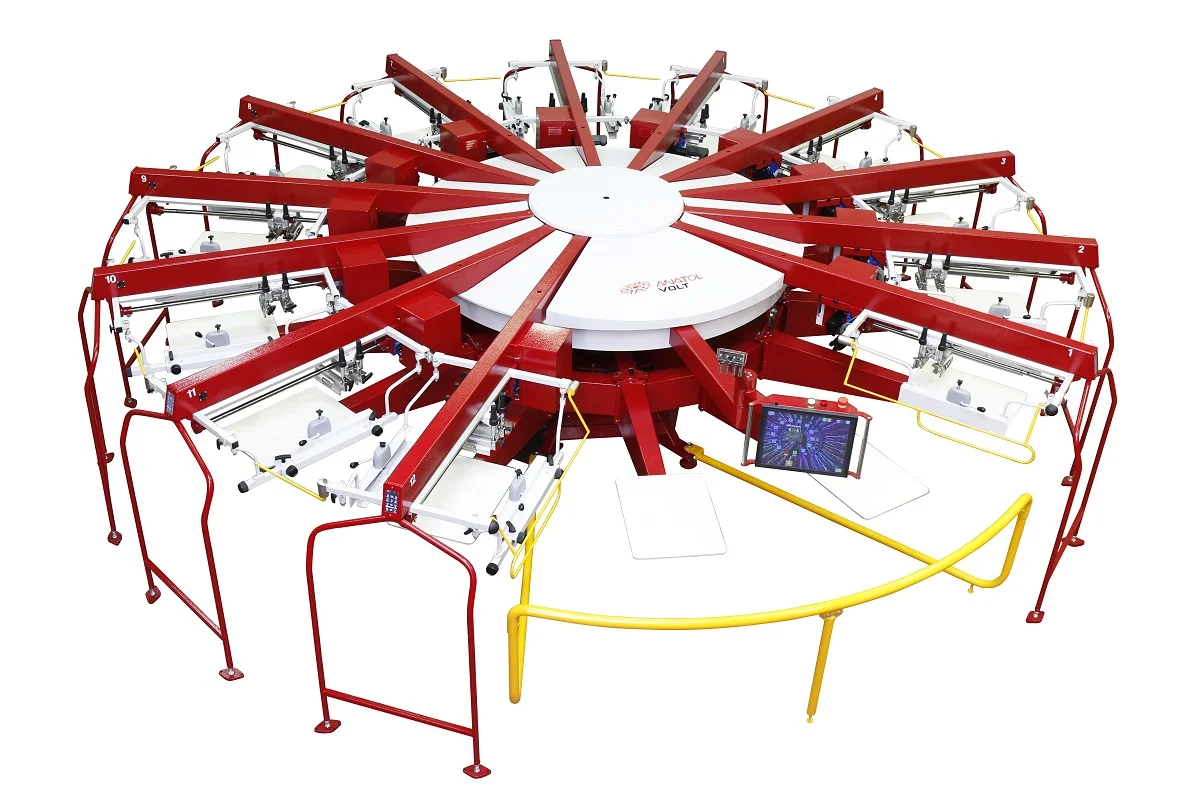

The All-Electric VOLT Series
Professional-Grade Electric Automatic Screen Printing Machine.
Maximum Print Area: 15” x 16” up to 20” x 28”.
Available in configurations of: 6 stations/4 colors up to 20 stations/18 colors.
Maximum Print Area: 15” x 16” up to 20” x 28”.
Available in configurations of: 6 stations/4 colors up to 20 stations/18 colors.
Automatic VOLT — The Future of Screen Printing… TODAY
The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill when compared to pneumatic automatic screen printing machines.
It’s designed for maximum ease of use with a 15” touchscreen interface, one touch digital off-contact controls, tool-less stroke and micro registration adjustments, laser alignment system and Speed Clamps screen locks. Anatol offers VOLTs to benefit shops of all sizes, with four models: VOLT S, VOLT M, VOLT L and VOLT XL, in configurations of 6 stations/4 colors to 20 stations/18 colors.
Standard features

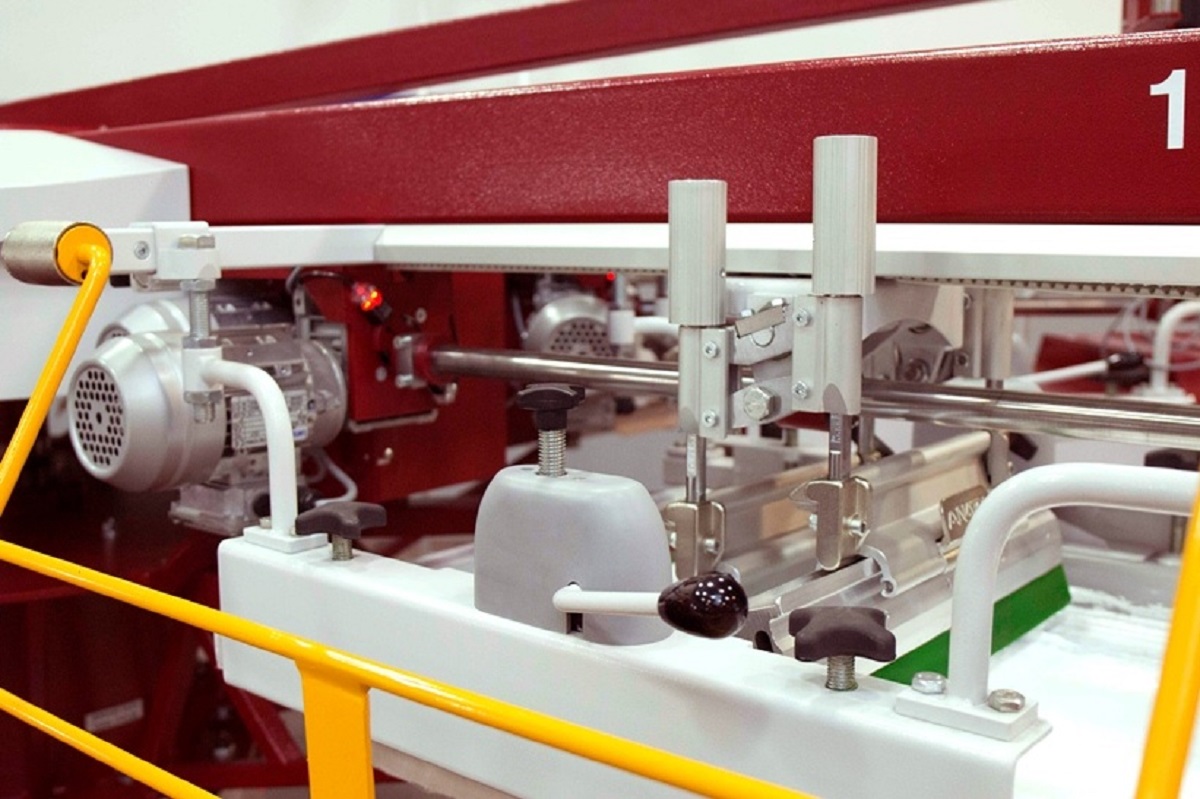

Print Heads
- AC electric-driven print heads enhance smoothness, speed and power
- Front and rear stroke adjustment
- Single-handed tool-less squeegee/flood bar locking
- Easily adjustable to side screen clamps accommodate a wide range of screen sizes
- Optional servo-driven print heads offer digital stroke length and squeegee pressure adjustment
Control Interface
- Aries 2 OS – User-friendly operating system
- 15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
- Rotating boom arm for easy access to each print head
- Easy access to operator’s manual
- Automatic software updates available via Wi-Fi
- Receive automatic email notifications with production statistics
- Connect the machine directly to Anatol Service with Presentation Mode
Functions
- Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
- Easily copy the same print head settings to all heads
Pallet System
- Pallet System Slide-style pallets allow for adjustments in print location
- Tool-free locking
- Precise four-point pallet leveling system
- 16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately
Registration
- True three-point micro-registration of screen (front-back, left-right, rotational movement)
- Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market
Skip Shirt & Smash Button
- Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
- Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors
Indexing System
- Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
- Smooth and quiet indexing at high speeds
- Ball bearing lead screw design with internal lubrication system
- Freewheel capability available on most models allows for manual carousel rotation
Heads Up Feature
- On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
- It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.
Central Off-Contact
- Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen
Safety System
- Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation
Laser Alignment System
- Laser alignment system for quick and easy apparel alignment
- Four independently-adjustable straight red lasers
Options
- Quartz flash cure units
- Foot pedal to control indexing
- Quick-release pallet system
- Variety of specialty and custom pallets available
- Special sizing available for doorways as small as 28’’
- Servo print heads allow you to control print stroke length and squeegee pressure digitally
- Individual print head controls-membrane panel or touchscreen
The VOLT Specifications
Volt S
| Stations Colors |
Maximum Print Area |
Maximum Screen Size |
Standard Pallet Size |
Press Diameter |
Touchscreen Support | Electrical Requirements |
|---|---|---|---|---|---|---|
| 06/04 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
9’ 4” | Boom | 1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A |
| 06/05 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
9’ 4” | Boom | 1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A |
| 08/06 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
10’ 2″ | Boom | 1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A |
| 08/07 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
10’ 2″ | Boom | 1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A |
| 10/08 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
11’ 2″ | Boom | 1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A |
| 10/09 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
11’ 2″ | Boom | 1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A |
| 12/10 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
12’ 4″ | Boom | 1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A |
| 12/11 | 15″ x 16″ 38.1cm x 40.6cm |
21″ x 28″ 54cm x 71cm |
16″ x 22″ 41cm x 56cm |
12’ 4″ | Boom | 1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A |
*All presses with Stationary Arm touchscreen support include individual head controls
Volt M
| Stations Colors |
Maximum Print Area |
Maximum Screen Size |
Standard Pallet Size |
Press Diameter |
Stationary Arm or Boom Touchscreen Support |
Electrical Requirements |
|---|---|---|---|---|---|---|
| 06/04 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A |
| 06/05 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A |
| 08/06 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
10’11” | Boom | 1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A |
| 08/07 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
10’11” | Boom | 1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A |
| 10/08 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
12’3″ | Boom | 1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A |
| 10/09 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
12’3″ | Boom | 1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A |
| 12/10 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
13’6” | Boom | 1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A |
| 12/11 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
13’6” | Boom | 1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A |
| 14/12 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
15’7″ | Boom | 3 ph 208/230v, 50/60 Hz, 23A |
| 16/14 | 16″ x 18″ 40.6cm x 45.7cm |
23″ x 33″ 58.4cm x 83.8cm |
16″ x 22″ 41cm x 56cm |
17’5″ | Boom | 3 ph 208/230v, 50/60 Hz, 26A |
*All presses with Stationary Arm touchscreen support include individual head controls
Volt L
| Stations Colors |
Maximum Print Area |
Maximum Screen Size |
Standard Pallet Size |
Press Diameter |
Touchscreen Support* | Electrical Requirements |
|---|---|---|---|---|---|---|
| 06/04 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
10’5” | Boom | 1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A |
| 06/05 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
10’5” | Boom | 1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A |
| 08/06 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
12’0” | Boom | 1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A |
| 08/07 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
12’0” | Boom | 1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A |
| 10/08 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
13’8” | Boom | 1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A |
| 10/09 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
13’8” | Boom | 1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A |
| 12/10 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
15’3” | Boom | 1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A |
| 12/11 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
15’3” | Boom | 1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A |
| 14/12 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
16’8” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 23A |
| 16/14 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
18’4″ | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 32A |
| 18/16 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
19’8” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 36A |
| 20/18 | 20″ x 20″ 50.8cm x 50.8cm |
26″ x 36″ 66cm x 91.4cm |
16″ x 22″ 41cm x 56cm |
21’4” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 38A |
*All presses with Stationary Arm touchscreen support include individual head controls
Volt XL
| Stations Colors |
Maximum Print Area |
Maximum Screen Size |
Standard Pallet Size |
Press Diameter |
Touchscreen Support* | Electrical Requirements |
|---|---|---|---|---|---|---|
| 08/06 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
13’10” | Boom | 1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A |
| 08/07 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
13’10” | Boom | 1 ph 208/230v, 50/60Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A |
| 10/08 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
15’ | Boom | 1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A |
| 10/09 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
15’ | Boom | 1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A |
| 12/10 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
16’6” | Boom | 1 ph 208/230v, 50/60 Hz, 36A** 3 ph 208/230v, 50/60 Hz, 20A |
| 12/11 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
16’6” | Boom | 1 ph 208/230v, 50/60 Hz, 37A** 3 ph 208/230v, 50/60 Hz, 21A |
| 14/12 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
18 | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 23A |
| 16/14 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
19’6” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 32A |
| 18/16 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
20’10” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 36A |
| 20/18 | 20″ x 28″ 50.8cm x 71cm |
26″ x 43″ 66cm x 109.2cm |
16″ x 22″ 41cm x 56cm |
22’8” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 38A |
*All presses with Stationary Arm touchscreen support include individual head controls
**Special order only
High Performance Technology
Take a closer look at how Anatol's Volt is more efficient, reduces operating cost and finds new ways to streamline production.
Servo Indexer
All VOLT presses are equipped with a servo indexer for rotating the pallets from station to station smoothly and quietly, even at the highest speeds. Unlike a pneumatic indexer, servo motors provide pinpoint control of acceleration and deceleration, eliminating vibration and improving the consistency of your prints.
Fast Facts
- Clockwise, counter-clockwise, full and half indexing
- Step Back Mode for print-flash-print
- Pallet position precise to +/- .001"
Servo Pallet Lift / Lower
All VOLTs feature servo pallet lift and lower. Instead of relying on pneumatic components to raise and lower the pallets, a powerful and reliable servo motor delivers extreme smoothness and precision.
A major benefit of servo lift and lower is digital off-contact adjustment. On an automatic press with pneumatic lift, you would have to go under the machine and adjust the off-contact distance by hand. With servo lift, you can make exact off-contact adjustments with the touch of a button, right from the press's touchscreen.
Fast Facts
- Digital central off-contact adjustment right from the press's touchscreen
- 0-3/8" off-contact range in 0.01" increments
The Industry's Most Advanced Print Heads
Ultra-reliable servo or AC motors.
Zero pneumatic components.
Servo Print Heads
Expand your capabilities even further with optional servo-driven print heads. VOLTs equipped with servo heads feature touchscreen controls on each head for fast job setups and test printing. Adjust your squeegee pressure and print stroke length digitally with the touch of a button – even set different pressures for each stroke when printing multiple strokes! And best of all, you can save and recall all print head settings, allowing you to set up repeat and regular orders in no time.
AC-Electric Print Heads
Standard VOLT presses come with AC-electric print heads. That means zero air cylinders, valves and tubing – parts you may be all too familiar with replacing if you own an air press. No need to worry about uneven, unsteady air pressure affecting your print quality or registration; screen clamping, squeegee and flood bar locking, depth and angle adjustments are all done mechanically. Add optional individual head controls to make job setups even quicker and easier.
Choose the Look That Fits You
Customizable Color Options Now Available.
Try It in 3D — See Your VOLT Come to Life
