Home / Conveyor Dryers / Solutions Series Electric Conveyors Dryers

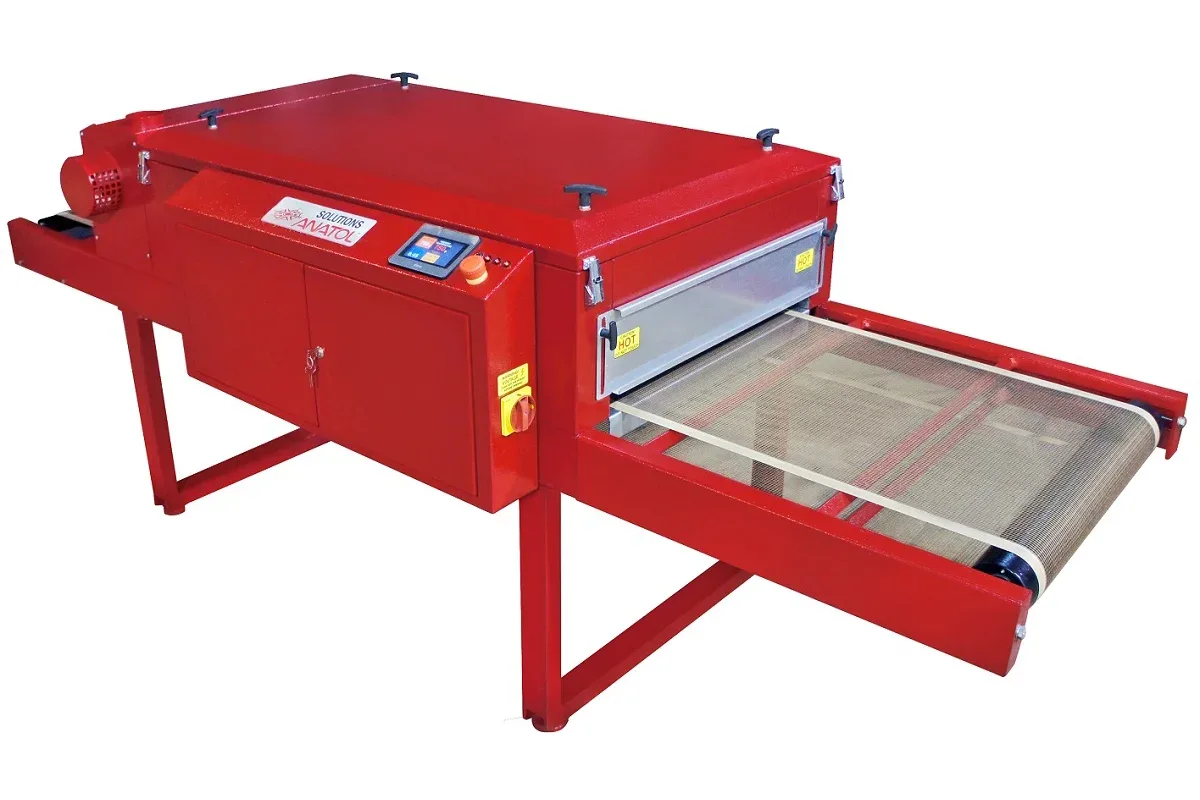

Solutions Series Electric Conveyors Dryers
Available in four basic models in configurations of: 24” belt width/4’ heat – 60” belt width/10’ heat.
Solutions Description
The Anatol Solutions Electric Conveyor Dryer is your key to flawless curing when gas isn’t an option! We designed this dryer for t-shirt and textile printing. It uses the latest technology, is easy to operate, and affordable. Elevate your print quality and boost production with Solutions — the choice of professionals worldwide!
Why Solutions is Your Perfect Choice:
- Flawless Curing: More ceramic heating panels ensure even heat across the chamber, delivering perfect results every time.
- User-Friendly Controls: Up to 9 programmable settings and a modern touchscreen make operation fast and intuitive.
- Time-Saving Efficiency: Automatic cool-down after curing speeds up your workflow, freeing you to focus on creativity.
- Versatile for Any Business: We offer six models. They range from 24” belts with 4’ heat chambers to 60” belts with 10’ chambers, fitting both small shops and large-scale operations.
- Built to Last: Double-wall construction with thermal insulation ensures durability and energy efficiency.
- Cost-Effective Operation: Ceramic heating elements reduce maintenance costs, saving you money without compromising quality.
Take Your Printing to the Next Level!
The Anatol Solutions Electric Conveyor Dryer isn’t just equipment — it’s an investment in your business’s success. This dryer has advanced technology and a two-year limited warranty. It helps you create vibrant, long-lasting prints you can trust. Order your Solutions dryer today and discover new opportunities to elevate your brand.
Solutions Standard features
Control Panel
- Digital control panel
- Solid-state variable belt speed control, set in ft/min or meters/min
- Programmable temperature controller (accuracy: +/- 1º)
- Automatic controlled start up and cool down mode
- Reversible belt direction

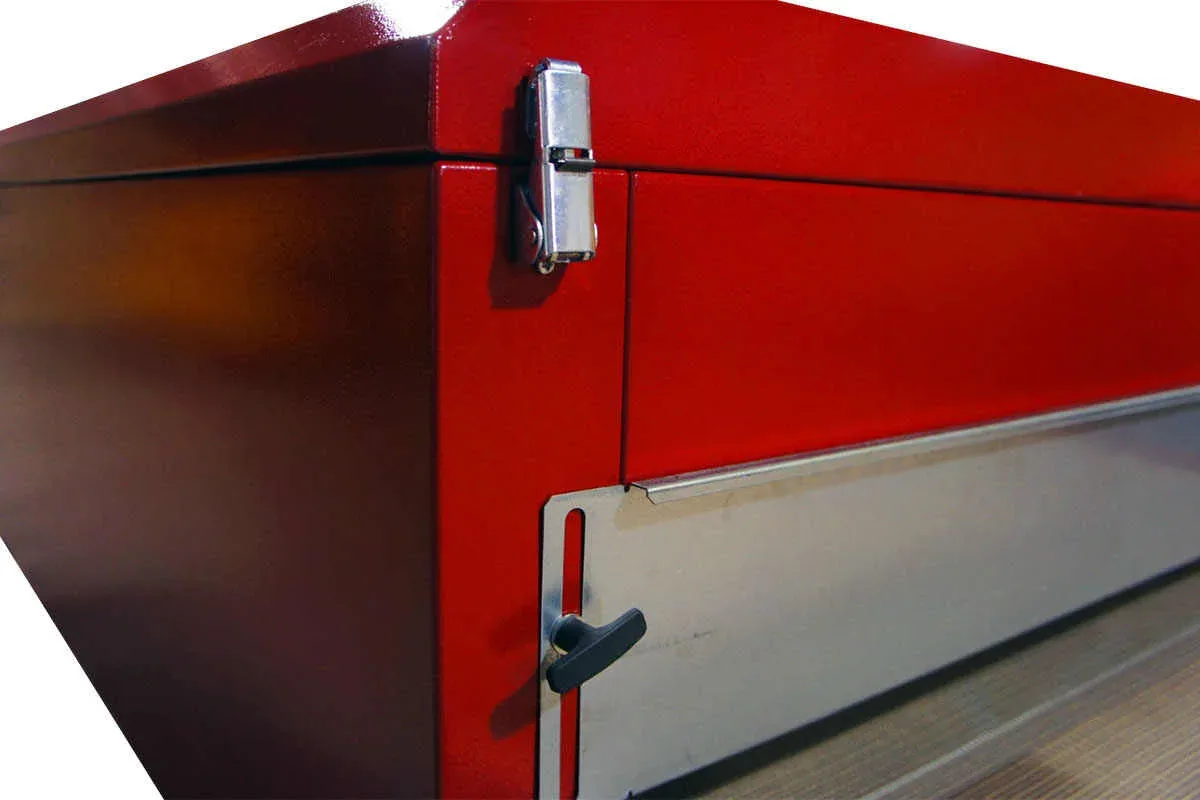

Construction
- Industrial grade AC motor
- Double wall insulation with galvanized interior
- Heavy-duty multi-section construction
- Air-cooled control cabinet
- Stainless steel slide out filters (larger models only)
Heating System
- 12-48 ceramic heating elements
- Adjustable heat panels (raise or lower)
Belt
- Adjustable infeed/outfeed openings
- Teflon-coated fiberglass belt
- Heavy-duty conveyor rollers
Solutions Solutions Specifications
| Model # | Belt Width | Heat Chamber |
Overall Length |
Smoke Hood Length |
Standard Infeed/Outfeed Length |
Wattage | Ceramic Elements |
Pieces Per Hour | EU -3(400V+N+PE) |
USA ~1 PH 230V |
USA ~3 PH 208V |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SED2404 | 24’’ 61cm |
4’0’’ 125 cm |
9’0’’ 275 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
5850 | 9 | 120-200 | 9 A | 26 A | 17 A |
| SED2404 | 24’’ 61cm |
4’0’’ 125 cm |
9’0’’ 275 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
7800 | 12 | 150-250 | 12 A | 35 A | 23 A |
| SED2406 | 24’’ 61cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
11700 | 18 | 200-350 | 18 A | 52 A | 33 A |
| SED3606 | 36’’ 92cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
15600 | 24 | 300-500 | 24 A | 69 A | 44 A |
| SED3610 | 36’’ 92cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
23400 | 36 | 550-800 | 35 A | 103 A | 66 A |
| SED4806 | 48’’ 122cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
23000 | 27 | 650-850 | 34 A | 101 A | 65 A |
| SED4810 | 48’’ 122cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
26000 | 42 | 700-950 | 39 A | 114 A | 73 A |
| SED6010 | 60’’ 152cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
31200 | 48 | 900-1200 | 46 A | 137 A | 88 A |
