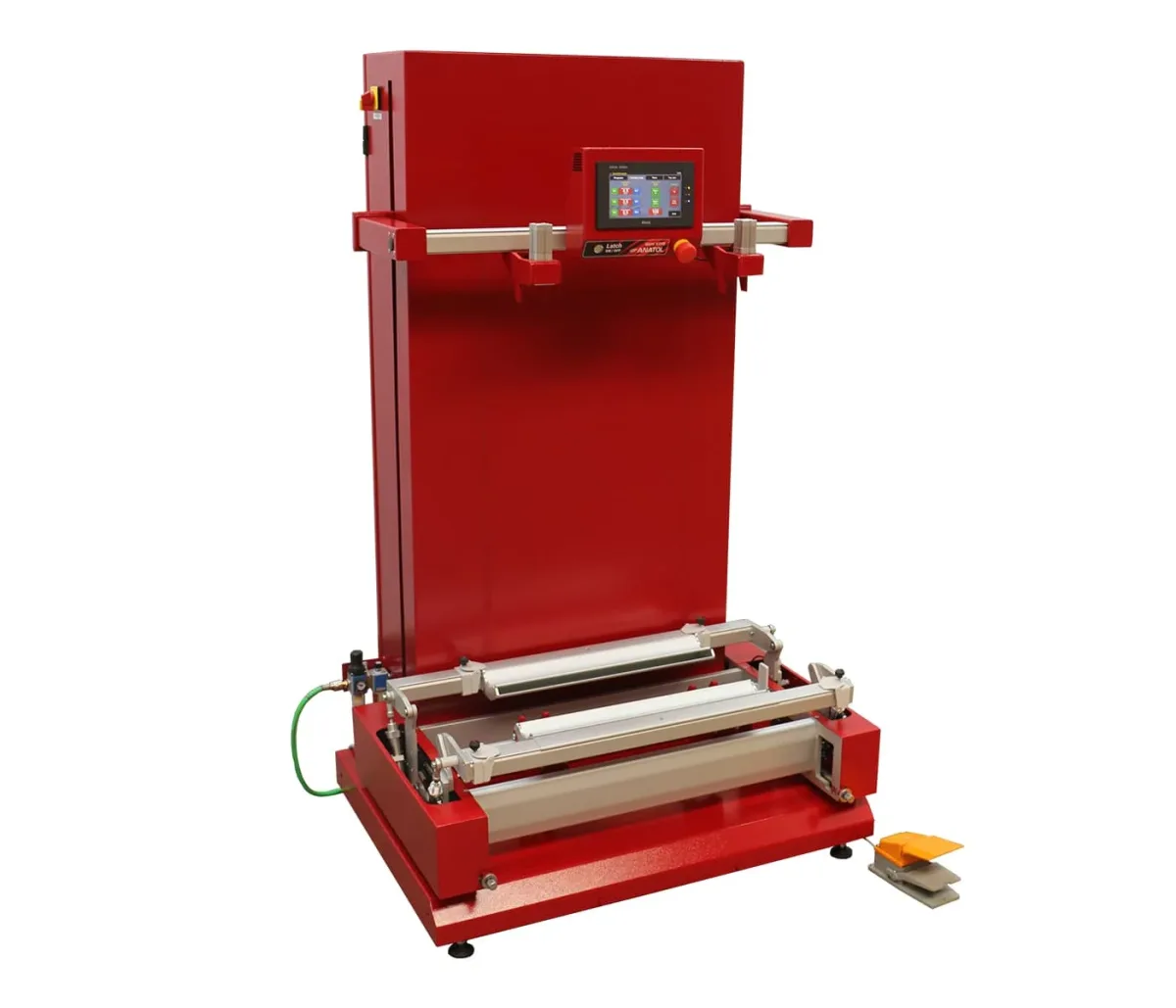

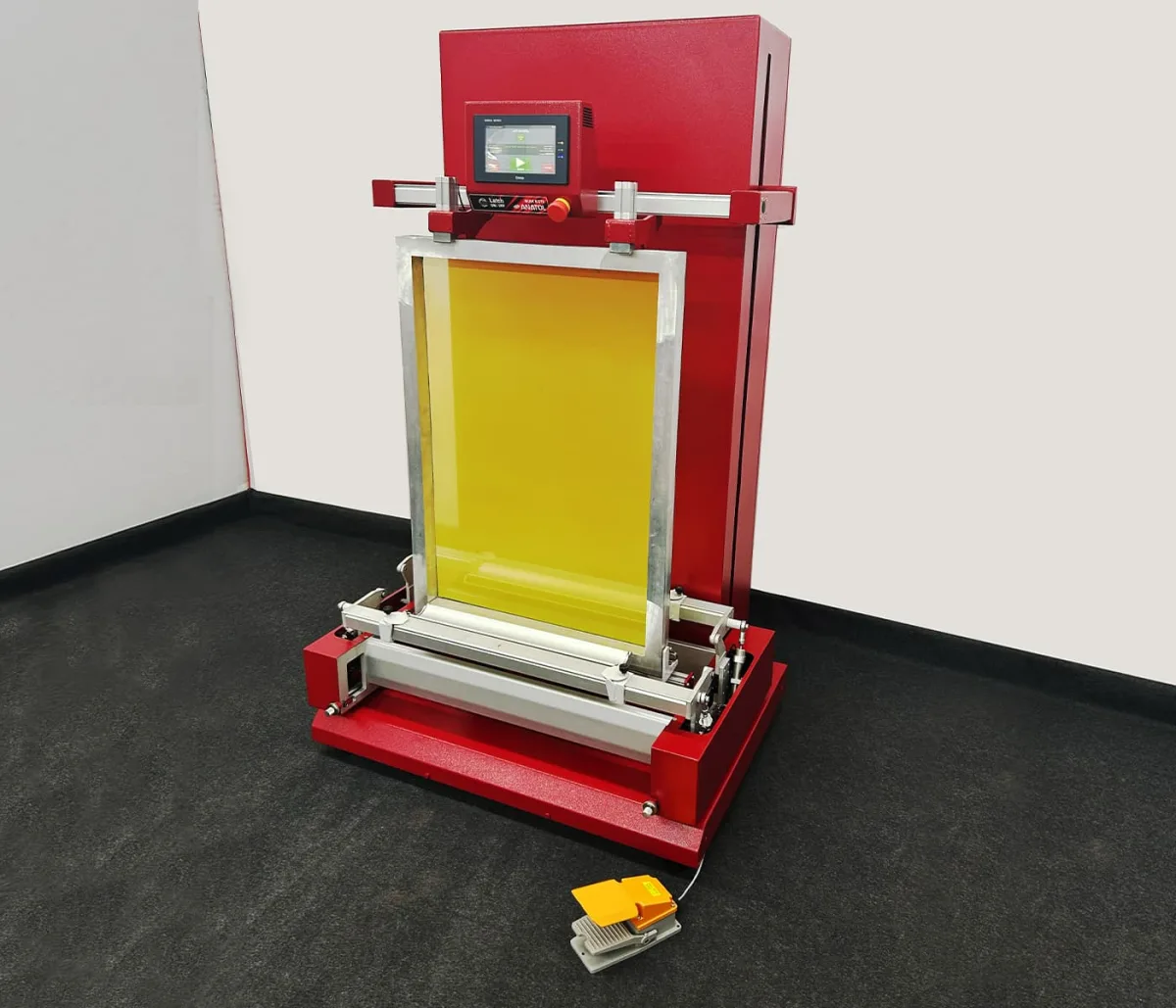

Quik-Kote mini Automatic Emulsion Coating Machine
Support wide screen frame height range between 15.5 – 43 inch.
DESCRIPTION Quik-Kote mini Automatic Emulsion Coating Machine
The Quik-Kote Mini from Anatol is an innovative and compact automatic emulsion coating machine. It delivers exceptional precision, efficiency, and high-quality prints, unlocking the full potential of your screen printing process. Replace manual coating with a smooth, efficient pre-press process that saves time and enhances your print quality.
Why the Quik-Kote Mini is a Game-Changer
- Flawless Coating with Servo Precision: Powered by advanced servo motors, this machine applies emulsion evenly and smoothly. It creates stencils with perfect thickness, resulting in vibrant, professional prints every time.
- Double-Sided Coating, Half the Time: This machine coats both sides of the screen simultaneously. It cuts prep time in half and improves productivity without compromising quality.
- Versatile for Any Shop: The machine accommodates screen frames ranging from 18” x 19” to 30” x 45”. It also supports thicknesses from 0.75” to 2”, fitting a wide range of printing needs.
- Built to Last: High-quality pneumatic cylinders and automatic braking ensure smooth, reliable performance for years of continuous use.
- Compact Powerhouse: Its space-saving design fits effortlessly into any shop, maximizing your workspace while delivering industrial-grade results.
- Secure and Adjustable Screen Locks: Built from durable steel, the locks adapt to a wide range of frame sizes and thicknesses. This ensures a secure hold and accurate emulsion coating.
- Hassle-Free Maintenance: Designed for easy cleaning, the aluminum scoop coaters help minimize downtime and maintain a steady workflow.
- Smart and Simple Controls: The 7″ touchscreen features user-friendly software that lets you store up to 15 coating programs. This ensures quick setup and accurate performance.
Elevate Your Prints, Boost Your Business
The Quik-Kote Mini is a powerful solution designed to accelerate screen preparation and ensure consistent, high-quality prints. This affordable, high-performance solution is ideal for small to medium-sized print shops. It eliminates manual coating errors, saves valuable time, and consistently delivers impressive results. Whether you’re scaling up or refining your craft, the Quik-Kote Mini empowers you to produce with confidence.
Discover how the Quik-Kote Mini can streamline and elevate your workflow. Pair it with the optional Quik-Kote coating scoop accessory for even more flexibility and efficiency.
Standard features
Design and Construction
- Robust and solid construction.
- Easy and simple replacement of the scoopes.
- Adjustable angle of operator panel for more easy operate.
- Two coating range adjustment modes:
– Directly input start and end range distance in inches
– Manually control jog speed, position and up/down bucket movements via HMI - Independent and simultaneous work of front and rear buckets.
- Servo controlled precise buckets movement.
Compatible Screens
- Support wide screen frame height range between 15.5 – 43 inch.
- Support screen frame thickness in range between 0.8 – 2 inch.
- Electric servo controlled top arm position for easy and fast adjustment to needed screen size.
- Easy and reliable screen locks for simple replacement of the screen.
- Foot pedal screen lock for more easy screen replacement.
Intuitive Control Interface

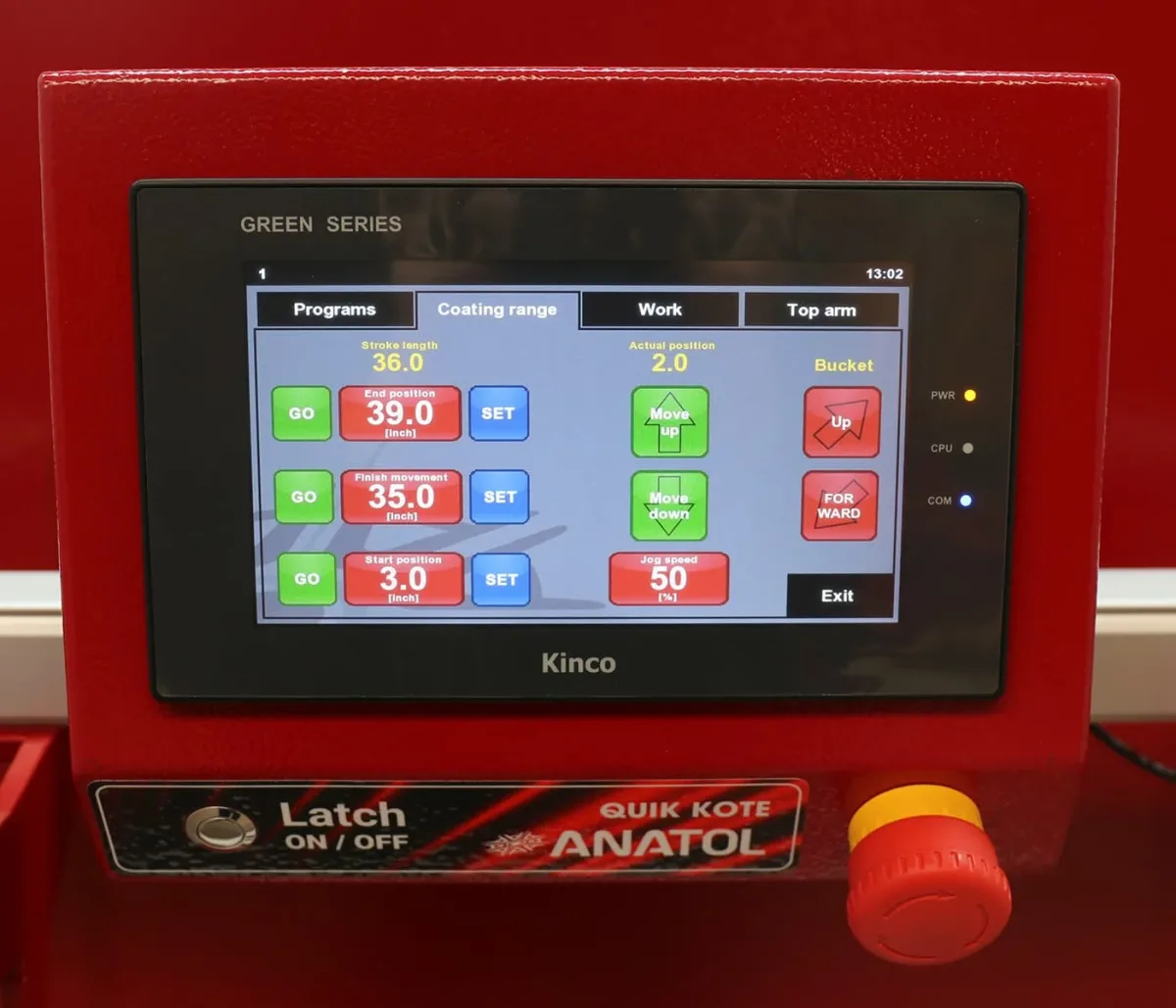

- New and more intuitive graphic user interface providing easier operation and access to most important settings
- Possibility to SAVE 20 programs with individual parameters including screen height and coating parameters.
SPECIFICATIONS
| Dimensions | 67.3’’ x 39.4’’ x 28’’ (171cm x 100cm x 71.1cm) |
| Weight | 460lb (210kg) |
| Compatible Screen Size | 15.5’’ x 43’’ (39.37cm x 109.22cm) |
| Compatible Screen Frame Thickness | 0.75’’ x 0.75’’ up to 0.8’’ x 2’’ (2cm x 2cm up to 2.2cm x 5cm) |
| Air Requirements | 0.56 CFM (16 l/min) @60PSI |
| Air Pressure | 58 PSI (4 bar) |
| ELECTRICAL REQUIREMENTS | 1ph, 208-240V, 50/60Hz, 4A Max Power: 850W |
