Prodigy Small Format Screen Printing Press
Maximum print area of 10” x 12”.
Available in configurations of: 6 stations/2 colors – 10 stations/4 colors.
Prodigy Small Format Screen Printing Press

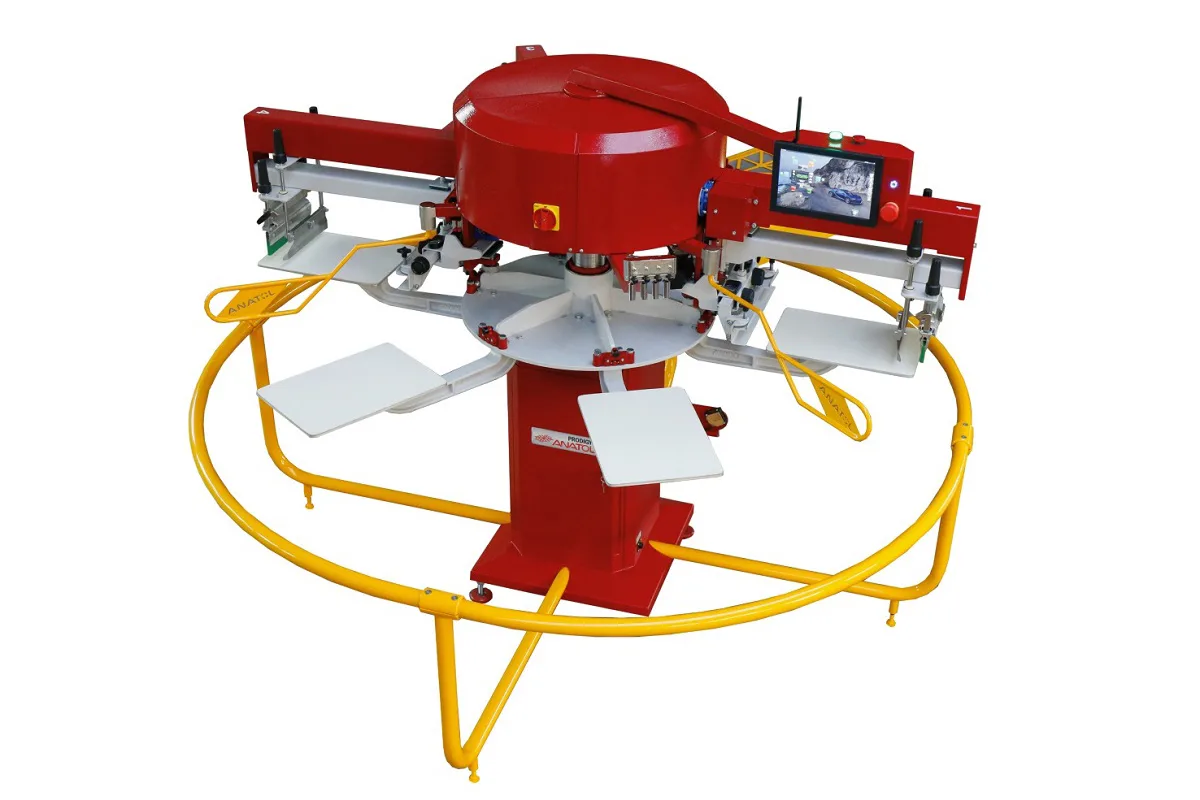

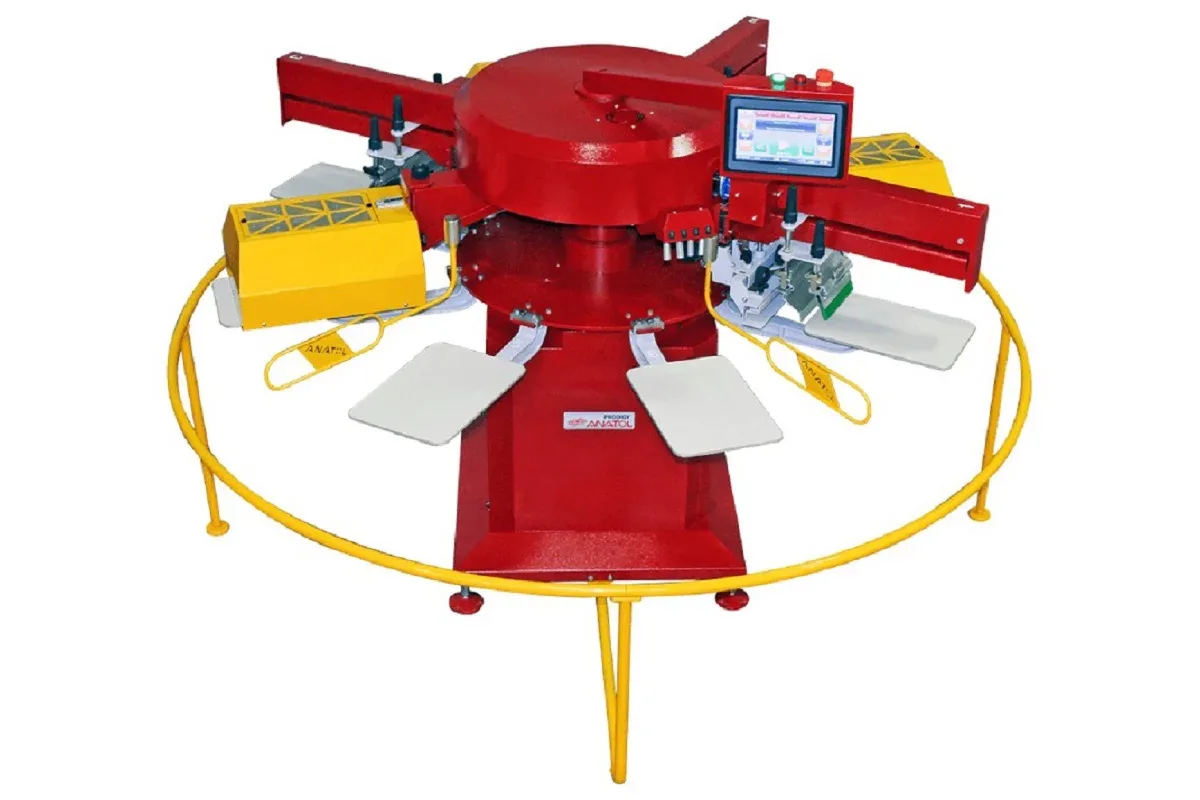

Discover the Anatol Prodigy, the ultimate all-servo automatic screen printing press designed for precision and speed on smaller substrates like shirt tags, sleeves, tote bags, koozies, and promotional products. With a blazing print capacity of up to 1,700 pieces per hour, the Prodigy delivers unmatched efficiency for high-volume small format printing.
Powered by Anatol’s exclusive Aries 2 operating system, the Prodigy features a 15-inch touchscreen interface for seamless, one-touch access to machine settings, real-time job status, and adjustable cycle dwell times. Its servo-driven indexer, lift, and print heads ensure smooth, consistent, and air-less operation—no air compressor required. The press supports 2 to 4 colors with a maximum image size of 10” x 12” and is available in configurations up to 10 stations.
Key features include:

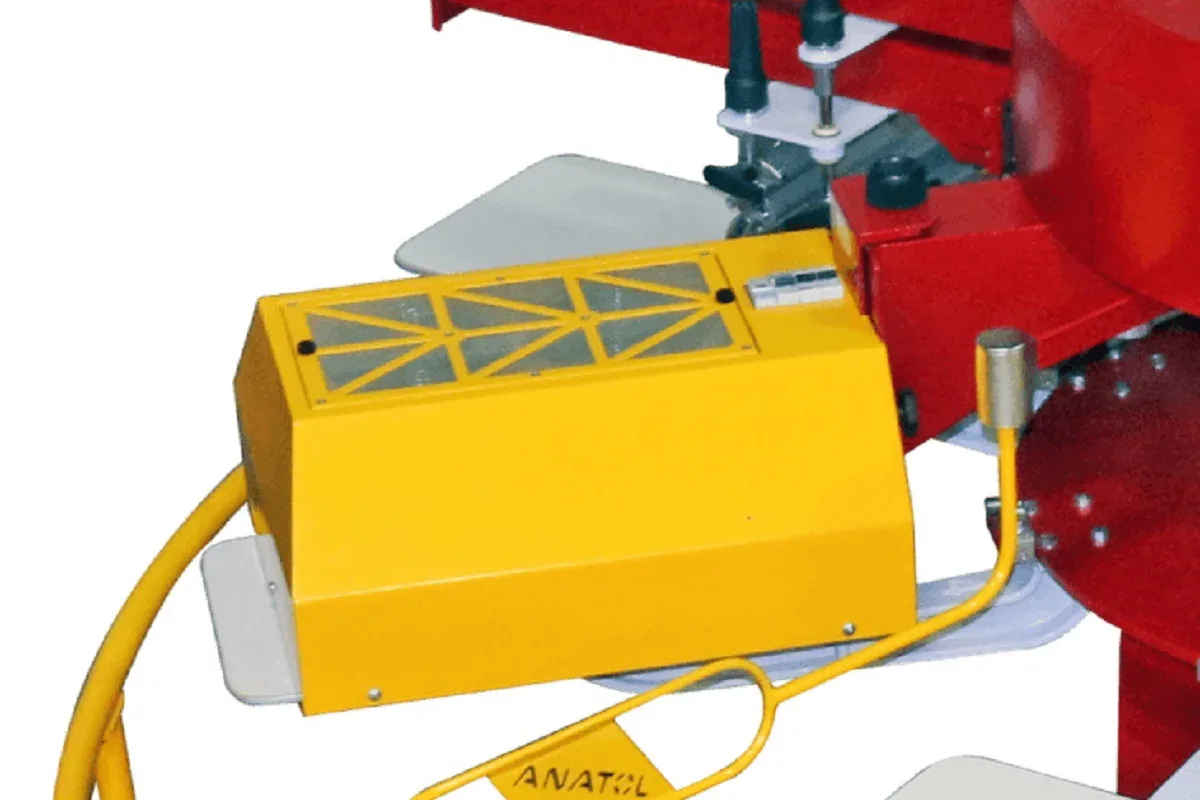

- Built-in forced air quartz flashes with airflow regulation for fast curing of diverse inks and substrates.
- Laser alignment system for quick, precise apparel alignment and pallet adjustments.
- Independent print/flood speed control and digital stroke adjustment for customized printing.
- Three-point micro-registration and individual off-contact settings for each print head.
- Quick-release squeegee and flood bars for rapid changeovers.
- Slide-style pallets for easy adjustments, with optional specialty pallets and custom configurations.
The Prodigy’s 100% air-less servo technology and mechanical screen clamping system make it a reliable, low-maintenance solution for small format printing. Whether you’re printing tags or promotional items, the Prodigy offers speed, precision, and versatility to elevate your production.
Ready to transform your small format printing? Contact Anatol today to learn more about the Prodigy and explore custom options like foot pedal control and specialty pallets.
Standard features

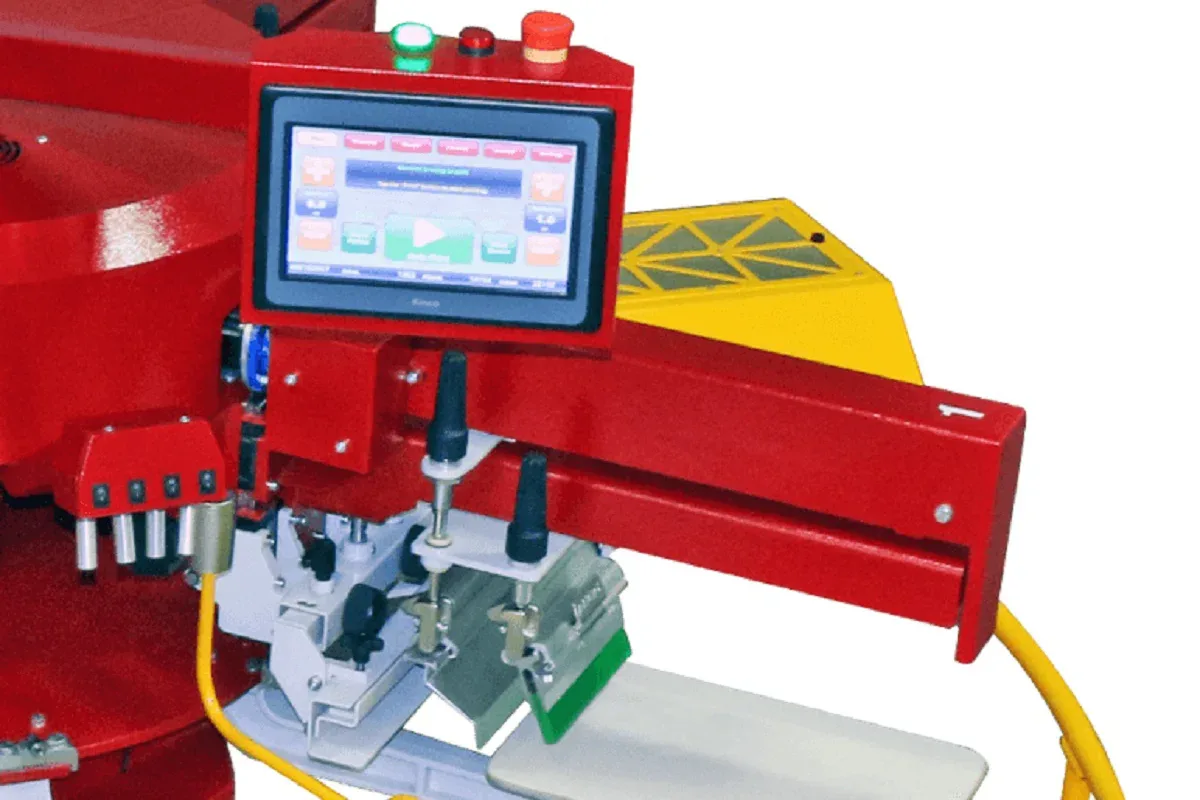

Touchscreen Controls
- 15” touchscreen with Aries 2 operating system
- Easy to program controls save on set-up time
- The screen displays the number of prints (dozen) and speed (pcs/hr)
- Adjustable dwell times allow for adjustments to cycling speed and cool-down time
- Digital stroke length adjustment
- Save/recall job settings
Print Heads
- Servo-electric print heads
- Independent flood/print speed control
- Multiple print strokes (1 – 9) per head
- Quick-release squeegee and flood bar for fast changeover
- Skip-Shirt sensor automatically detects shirts
- Rear screen holders with mechanical clamps allow for quick and easy loading of screens
Tool-less Adjustment
- Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
- Three-point micro-registration (front-to-back, left-to-right and rotational movement) available for multicolor models
Construction
- Servo indexer
- Heavy-duty rolled steel frame supports smooth, high speed production cycles
- Small footprint accommodates tight spaces
Safety Systems
- Industry’s best safety bars provide a barrier protecting operators from rotating carousel
- Unique safety system on load/unload station
Laser Alignment System
- Laser alignment system for quick and easy apparel alignment
- Four independently-adjustable straight red lasers
Pallets
- Slide style pallets, precisely as on our bigger automatic presses, with tool-less locking and unlocking for easy pallet changeover and adjustment
- Rubber-coated aluminum pallets
- Standard 9.1” x 12” pallets included (for machines with 8″ x 8″ print area)
- Standard 11″ x 16.3″ pallets included (for machines with 10″ x 12″ print area)
- Other pallets available upon request
Prodigy Specifications
| Stations/Colors | Maximum Print Area | Maximum Screen Size | Standard Pallet Size | Diameter | Weight | Height | Minimum Door Size Standard | # of Quartz Flashes/Power | Electrical Requirements |
|---|---|---|---|---|---|---|---|---|---|
| 6/2 | 8” x 8” 20cm x 20cm |
12” x 17.5” 31cm x 45cm |
9.1” x 12” 23cm x 31cm |
5’ 3” 160cm |
661lbs 300kg |
5’ 11” 180cm |
4’ 1” 125cm |
2 2 x 1750W |
1 Ph, 22 A, 208-240V, 50-60Hz |
| 8/3 | 8” x 8” 20cm x 20cm |
12” x 17.5” 31cm x 45cm |
9.1” x 12” 23cm x 31cm |
5’ 7” 170cm |
771lbs 350kg |
5’ 11” 180cm |
4’ 7” 140cm |
3 3 x 1750W |
1 Ph, 30 A, 208-240V, 50-60Hz |
| 10/4 | 8” x 8” 20cm x 20cm |
12” x 17.5” 31cm x 45cm |
9.1” x 12” 23cm x 31cm |
6’ 5” 195cm |
5’ 11” 180cm |
5’5″ 165cm |
4 4 x 1750W |
1 Ph, 45 A, 208-240V, 50-60Hz 3 Ph, 31 A, 208-240V, 50-60Hz |
| Stations/Colors | Maximum Print Area | Maximum Screen Size | Standard Pallet Size | Diameter | Weight | Height | Minimum Door Size Standard | # of Quartz Flashes/Power | Electrical Requirements |
|---|---|---|---|---|---|---|---|---|---|
| 6/2 | 10” x 12” 25cm x 30cm |
17” x 24” 43cm x 61cm |
11” x 16.3” 28cm x 41.4cm |
7’ 3” 220cm |
1102lbs 500kg |
5’ 11” 180cm |
5’ 7” 170cm |
2 2 x 4000W |
1 Ph, 47 A, 208-240V, 50-60Hz 3 Ph, 27 A, 208-240V, 50-60Hz |
| 8/3 | 10” x 12” 25cm x 30cm |
17” x 24” 43cm x 61cm |
11” x 16.3” 28cm x 41.4cm |
7’ 9” 235cm |
1323lbs 600kg |
5’ 11” 180cm |
6’ 3” 190cm |
3 3 x 4000W |
1 Ph, 68 A, 208-240V, 50-60Hz 3 Ph, 39 A, 208-240V, 50-60Hz |
| 10/4 | 10” x 12” 25cm x 30cm |
17” x 24” 43cm x 61cm |
11” x 16.3” 28cm x 41.4cm |
8’ 6” 260cm |
6’1″ 185cm |
7’3″ 220cm |
4 4 x 4000W |
1 Ph, 90 A, 208-240V, 50-60Hz 3 Ph, 50 A, 208-240V, 50-60Hz |
