Color Magic
Four models available, with a maximum print area of: 15″x26″, 25″x38″, 30″x41″ or 32″x46″.

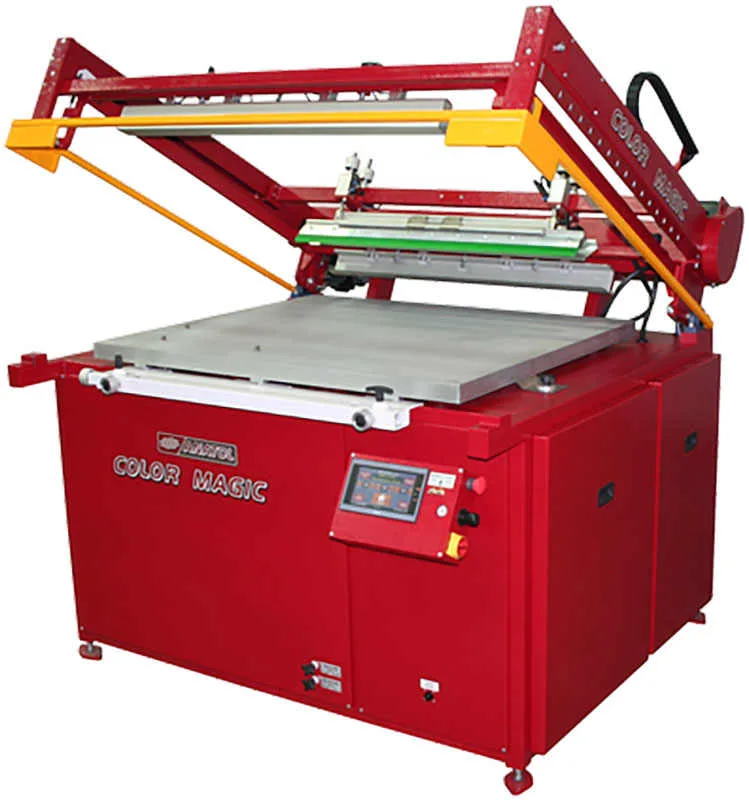

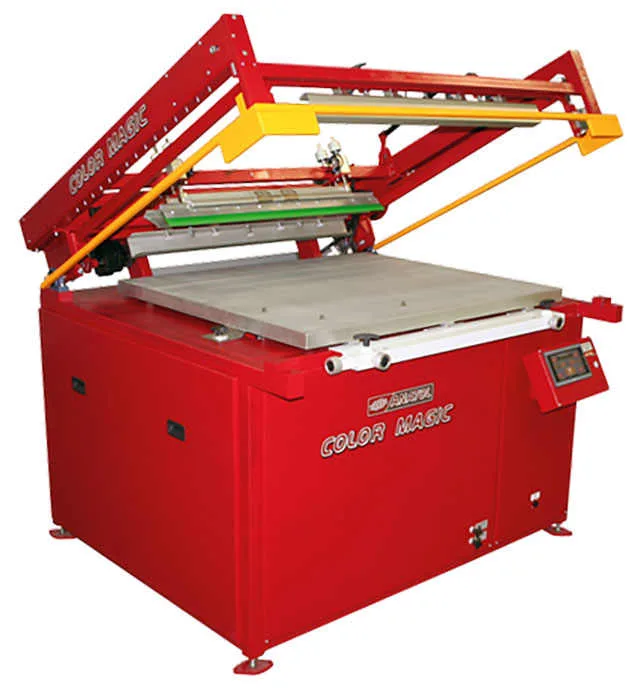

Color Magic One Color Flatbed Press
Color Magic Flatbed Graphic Press: Versatile, Affordable, and Precise
The Color Magic flatbed graphic press by Anatol is a perfect choice for professional printers. The Color Magic flatbed press helps printers create high-quality signage, posters, banners, and large-format graphics with speed and precision. This affordable, single-color press is designed for versatility, capable of printing on a wide range of substrates, including paper, glass, metal, vinyl, plastics, and virtually any flat stock. With support for both water-based and plastisol inks, the Color Magic delivers exceptional results for diverse printing projects.
Key Features of the Color Magic Flatbed Press
- Adjustable Vacuum Bed: Ensures substrates lie flat during printing, guaranteeing precise and consistent results.
- Servo-Driven Motor: Powered by a durable servo electric motor with a variable-frequency drive, rated for up to 30 years of reliable performance, ensuring smooth and efficient print jobs.
- Programmable Settings: Fully programmable with the Aries operating system on a 7″ touchscreen interface, allowing you to save job settings like peel ratio, dwell time, and print duration for quick setup on repeat projects.
- Precision Print Heads: Features independent servo motors for print carriage and head lift, with true three-point micro-registration (front-to-back, left-to-right, and rotational) for pinpoint accuracy.
- Squeegee and Flood Bar: Offers calibrated, micro-adjustable pressure settings and independent speed controls for precise printing. Tool-less angle adjustments (0°–30° in 5° increments) simplify setup.
- Advanced Peel System: Synchronized gear-driven peel system with flat-flood capability for flawless prints.
- Safety and Durability: Equipped with a safety bar to stop the press if triggered, preventing injuries, and a robust construction for long-term reliability.
- Tool-less Adjustments: Gauged click-type central off-contact (0°–3/8° in 0.05° increments) and easy squeegee/flood bar adjustments streamline operation.
- Heavy-Duty Pallets: Anodized aluminum vacuum-bed pallets with programmable vacuum suck and puff times, plus set pins for aligning large substrates.
Why Choose the Color Magic?
Perfect for small to medium-sized print shops, the Color Magic combines affordability with advanced features, making it a top choice for flatbed screen printing. It’s intuitive touchscreen controls, precise micro-registration, and versatile substrate compatibility ensure professional-grade results for signage, posters, banners, and more. Whether you’re printing on vinyl, metal, or glass, the Color Magic delivers vibrant, high-quality prints with minimal setup time.
Ready to elevate your printing capabilities? Contact Anatol today to learn more about the Color Magic flatbed graphic press or request a demo.
Standard features
Touchscreen Controls
- 7” touchscreen interface with Aries operating system
- Easy access to all machine settings
- Run saved program in auto-mode, or run in manual mode
- Set to plastisol or waterbased ink
- Real time display of daily and total print count
- Set how high frame opens to reduce production time
Print Heads
- Servo electric-driven print carriage
- Breaks to prevent drifting in print area
- Independent servo motors for print carriage and head lift
- True three-point micro-registration (front-to-back, left-to-right and rotational movement)
Squeegee and Flood Bar
- Calibrated independent and micro-adjustable pressure settings
- Easy squeegee and flood bar installation and removal, with option to move or raise either to front or rear without flooding or printing
- Screen printing squeegee and flood bar speeds can be set individually
- Squeegee pressure regulator
Tool-less Adjustment
- Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
- Gauged click-type central off-contact precisely adjusts print station at a range of 0”-3/8” at increments of .005”
Peel System
- Adjustable synchronized gear-driven peel system
- Flat-flood capability
Pallets
- Heavy-gauge anodized aluminum vacuum-bed pallet
- Set pins up/down to align large substrates
- Program vacuum suck time and puff time
- Front access for easy setup and adjustment
Construction
- The safety bar stops the press if it is hit, preventing serious injury
- Servo electric motor with variable-frequency drive rated to last up to 30 years
Color Magic Specifications
| Single Station Flatbed | Maximum Print Area | Maximum Screen Size | Vacuum Bed Size | Machine o.d. | Air Consumption @ 100 PSI | Electrical Requirements |
|---|---|---|---|---|---|---|
| COLMAGGRA-1526 | 15″ x 26″ 38cm x 66cm |
32″ x 38″ x 2.25″ 81cm x 97cm x 5.7cm |
25″ x 38″ 63.5cm x 96.5cm |
41″ x 50.4″ 104cm x 128cm |
3 SCFM 85 L/min |
1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
| COLMAGGRA-2538 | 25″ x 38″ 64cm x 97cm |
42″ x 50″ x 2.25″ 106cm x 127cm x 5.7cm |
36″ x 45.5″ 91cm x 116cm |
51.5″ x 60.4″ 131cm x 153cm |
3 SCFM 85 L/min |
1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
| COLMAGGRA-3041 | 30″ x 41″ 76cm x 104cm |
47″ x 53″ x 2.25″ 119cm x 135cm x 5.7cm |
41″ x 45.5″ 104cm x 116cm |
51.5″ x 65.4″ 131cm x 166cm |
3 SCFM 85 L/min |
1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
| COLMAGGRA-3246 | 32″ x 46″ 81cm x 117cm |
49″ x 58″ x 2.25″ 124cm x 147cm x 5.7cm |
43″ x 52″ 110cm x 132cm |
65″ x 74″ 165cm x 188cm |
3 SCFM 85 L/min |
1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
*Special order
