Description

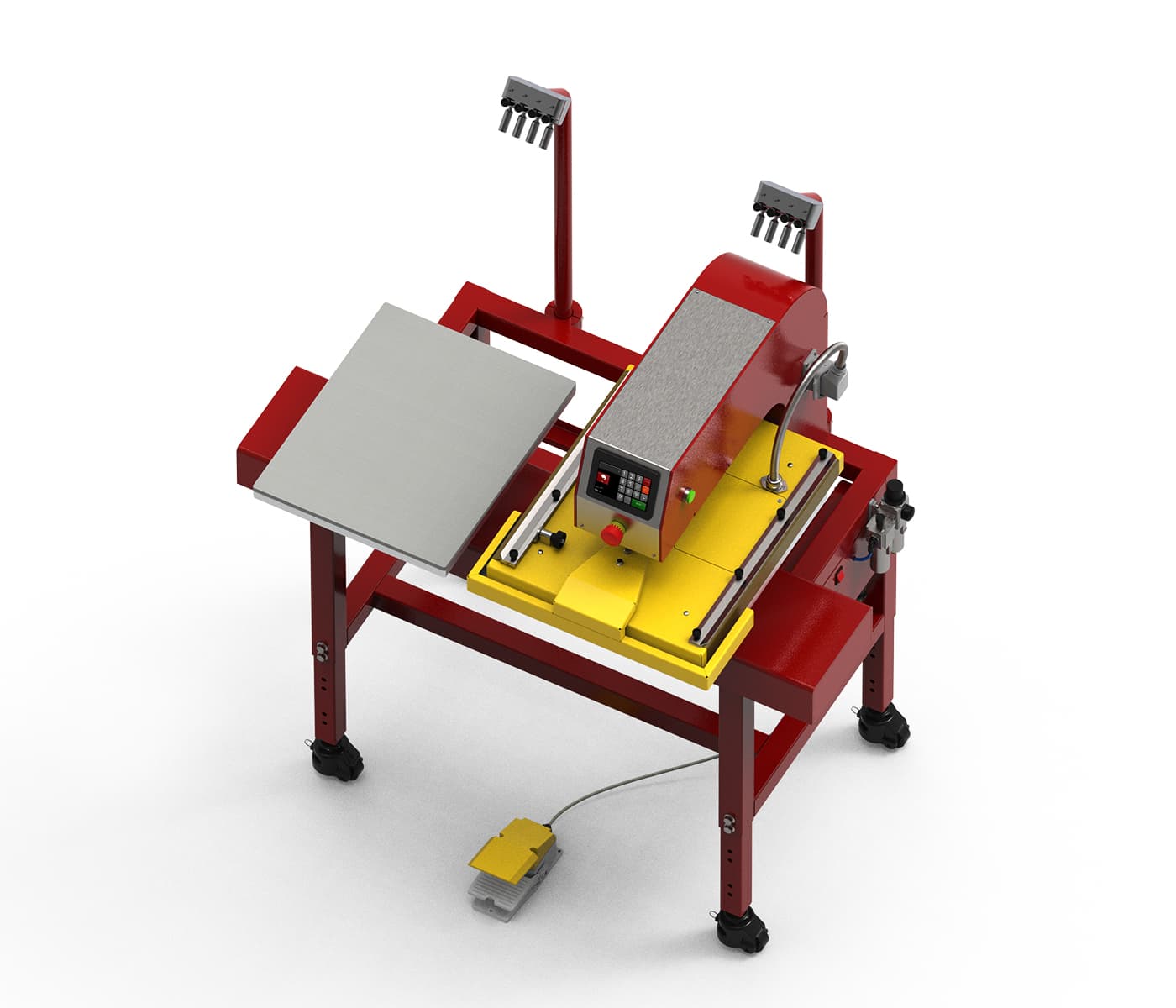

Anatol Rapid Transfer System (RTS) – Two Station Automatic Heat Transfer Press
Boost your production with Anatol’s Rapid Transfer System (RTS)! This Two Station Automatic Heat Transfer Press applies transfers, foil, and other heat-applied decorations automatically, helping you achieve faster, more consistent results compared to a manual clamshell press.
Key Benefits:
-
Pre-heat and cure garments: Pre-heat textiles before applying graphics, cure DTG prints after pretreating, and smooth fibers for superior print quality.
-
Maximum pressure: The RTS delivers up to 120 psi, ensuring flawless results on a wide range of materials.
-
User-friendly touchscreen control: Adjust time, pressure, and temperature digitally, save and recall programs, and switch easily between three modes: manual, semi-automatic, and automatic.
-
Durable construction: Built with heavy-duty steel for years of reliable service.
-
Standard pallets included: Comes with two 16” x 20” pallets, with additional pallets available for specialty applications.
-
Laser alignment system: Built-in lasers over each pallet ensure precise garment loading and print placement, minimizing misprints and waste.
Whether you have a DTF or DTG machine, the RTS helps you maximize output and print quality—making it the ideal solution for high-volume apparel production.
Upgrade your workflow with Anatol’s RTS and produce professional-quality prints faster and easier than ever!
Standard features
Design and Construction
- Heavy-duty steel build
- Two quick-change pallets measuring 16”x 20” each
- Non-stick PTFE covering on the heating surface distributes heat evenly
- Heating surface applies a maximum pressure of 120 psi
- Floor stand included
- Fully pneumatic operation
- Safety that ensures operator protection
- Adjustable height (3 positions)
Features
- Easy-to-use touchscreen control panel
- Work in automatic, semi-automatic or manual mode
- Save and quickly recall job settings including time, pressure and temperature
- Four-head laser alignment system over both pallets, included standard
- Foot pedal control for extra convenience
LCD Touchscreen Controls
- 4.3” full-color touchscreen display
- Quickly program temperature, pressure and time
- Set different parameters for each pallet
- Save and recall different job settings for fast setups
- Work counter tracks number of impressions per station
- Manual, semi-automatic and automatic work modes
Automatic Heat Transfer Press Specifications
| Model # | Heat Transfer Area | Weight | Dimensions LxDxH | Maximum Pressure | Air Requirements | Electrical Requirements |
|---|---|---|---|---|---|---|
| AHT | 16″ x 20″ 41cm x 51cm |
359lb (163kg) |
47.2”x34.3”x52.3” (120cm x87cm x133cm) |
120 PSI | 4 CFM (12 L/min) @ 8 bar |
230 V, 15 A, 3kW |
