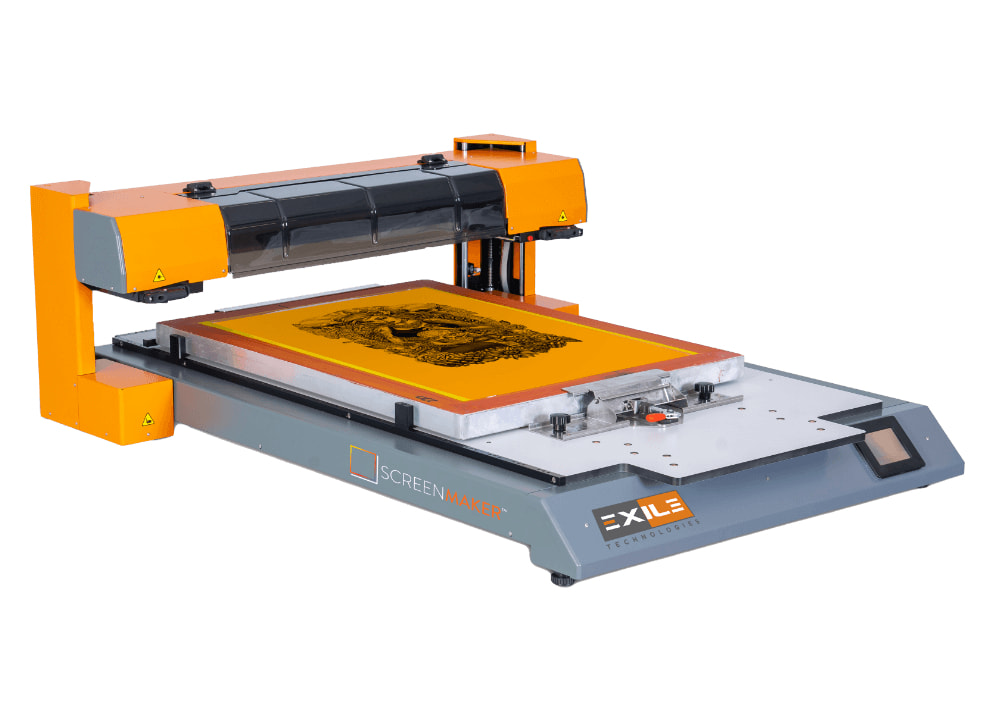

COMPUTER-TO-SCREEN SYSTEM
Screenmaker
At last, a low-cost, direct-to-screen solution that prints digital images directly onto a coated screen. SCREENMAKER CTS produces high-quality stencils in minutes with automatic digital image registration built in.
After imaging, the screen is ready for immediate exposure without the need for a glass or vacuum. Pinholing and undercutting are completely eliminated, so small halftone highlight dots and shadow details are accurately reproduced.
The SCREENMAKER CTS is powered by CADLink’s SCREENMAKER RIP for imaging color separations quickly and easily from any Mac or Windows graphics application.
It also includes a stand-alone Windows printing utility for print queue management, printer setup, and maintenance (ink level monitoring, nozzle checks, head cleaning, head alignment, etc.).
BENEFITS
- Metal body industrial design
- Robust y-axis for greater precision
- Native support for 1-bit TIFF workflow
- Micro-weaving technology
- Increases print speed
- Bi-directional printing for faster print modes
- User-friendly print utility software
SCREENMAKER — Specifications
| Model | SCREENMAKER Computer-to-Screen System |
|---|---|
| Printhead | Thermal Drop on Demand Inkjet (1–4 offset heads – software selectable) |
| Resolution | 600×1200, 1200×1200 & 1200×2400 dpi for max screen rulings of 65 dpi |
| Max Media Size | 40” (1050 mm) high × 26” (600 mm) wide |
| Max Image Size | 29” (735 mm) high × 20” (508 mm) wide |
| Imaging Speed | FAST = 2.5 min/ft², NORMAL = 5 min/ft², HQ = 8 min/ft² |
| Interface | USB (via PC Windows) |
| Voltage | AC 120/220V Auto-sensing |
| Environment | 40–70% relative humidity |
| Weight | 110 lbs (50 kg) |
| Dimensions (W × D × H) | 48” × 40” × 16.5” (1250 mm × 1020 mm × 420 mm) |
