Description
Anatol’s ARME (Anatol Registration Made Easy) registration system was created to help screen printers save time and improve accuracy during registration, both on your exposure unit and on your press.

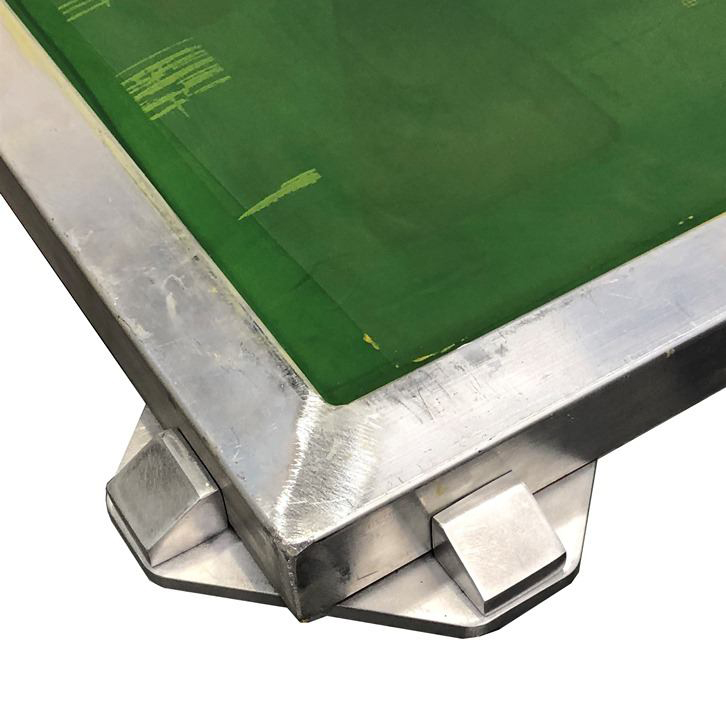

Simply align your film positives and screens on your light table or exposure unit using the master frame, then expose your screens. Next, align your screens on press using the guide pallet, which replicates the registration points on the master frame to ensure your screens are registered correctly for printing. In addition to being easy to use, ARME registration systems are durable, affordable, and a huge value to screen printers looking to reduce setup times and maintain consistently high print quality.
ARME systems are compatible with all Anatol manual and automatic presses* and a wide variety of screen sizes.
Each system includes:
- Aluminum guide pallet (x1)
- Steel master frame (x1)
- Metal pin bars (x2)
- Master grid sheet (x1)
- 8.5″ x 20″ carrier sheets (x25)
- 11.5″ x 20″ carrier sheets (x25)
*Not including Color Magic graphic flatbed press and Prodigy tag printer
Standard features
High Quality Prints, Quick Setup
- Anatol’s ARME (Anatol Registration Made Easy)
registration system was created to help screen
printers save time and improve accuracy during
registration, both on your exposure unit and on
your press - ARME systems are designed for maximum ease
of use, and they are compatible with all Anatol
manual and automatic VOLT, Vector and Titan
automatic screen printing presses.
Each system includes
- Aluminum guide pallet (x1)
- Steel master frame (x1)
- Metal pin bars (x2)
- Master grid sheet (x1)
- 8.5’’ x 20’’ carrier sheets (x25)
- 11.5’’ x 20’’ carrier sheets (x25)
Arme Specifications
| Model | For screen sizes: | Master frame dimensions | Compatible Aurora Exposure Units |
|---|---|---|---|
| ARME-2024 | 20″ x 24″ (51cm x 61cm) |
25″ x 29″ (64cm x 74cm) |
AURORALEDEXP-23X33 AURORALEDEXP-26X36 AURORALEDEXP-33X46 AURORALEDEXP-52X36 |
| ARME-2128 | 21” x 28” (53cm x 71cm) |
26” x 33” (66cm x 84cm) |
AURORALEDEXP-23X33 AURORALEDEXP-26X36 AURORALEDEXP-33X46 AURORALEDEXP-52X36 |
| ARME-2331 | 23” x 31” (58cm x 79cm) |
28” x 36” (71cm x 91cm) |
AURORALEDEXP-26X36 AURORALEDEXP-33X46 AURORALEDEXP-52X36 |
| ARME-2333 | 23” x 33” (58cm x 84cm) |
28” x 38” (71cm x 97cm) |
AURORALEDEXP-26X36 AURORALEDEXP-33X46 AURORALEDEXP-52X36 |
| ARME-2536 | 25” x 36” (64cm x 91cm) |
30” x 41” (76cm x 104cm) |
AURORALEDEXP-33X46 AURORALEDEXP-52X36 |
| ARME-2636 | 26” x 36” (66cm x 91cm) |
31” x 41” (79cm x 104cm) |
AURORALEDEXP-33X46 AURORALEDEXP-52X36 |
