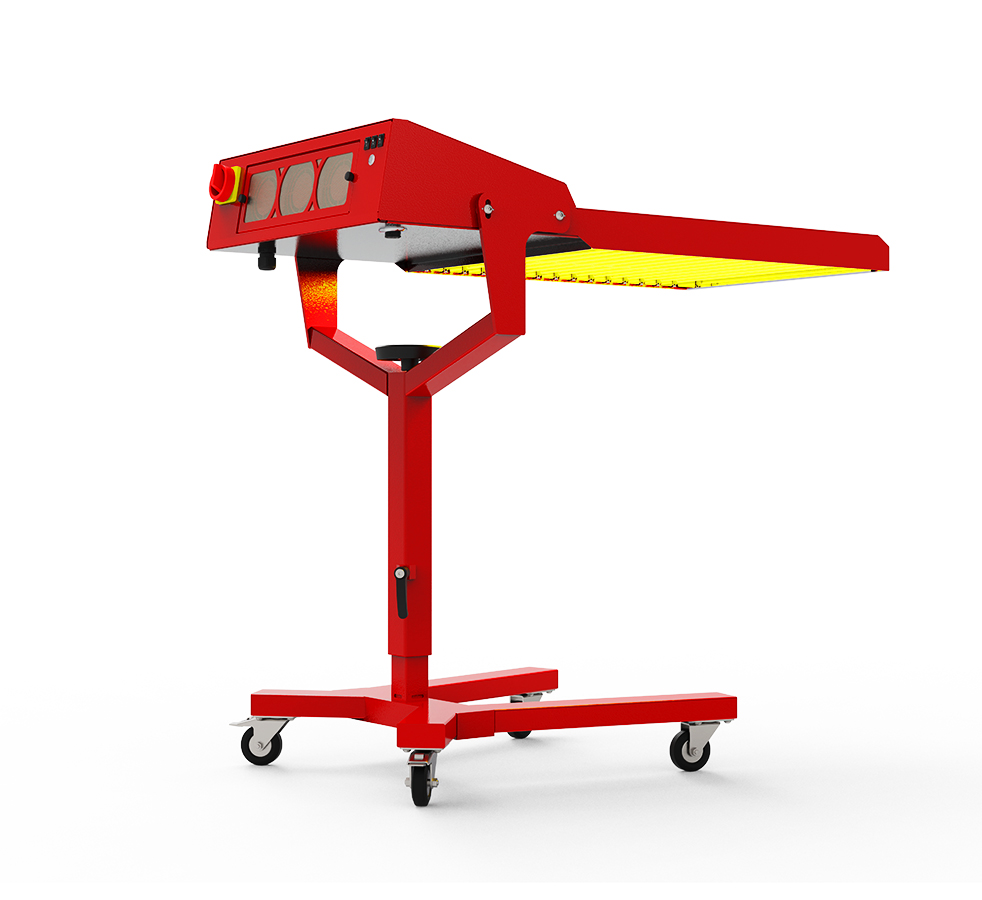

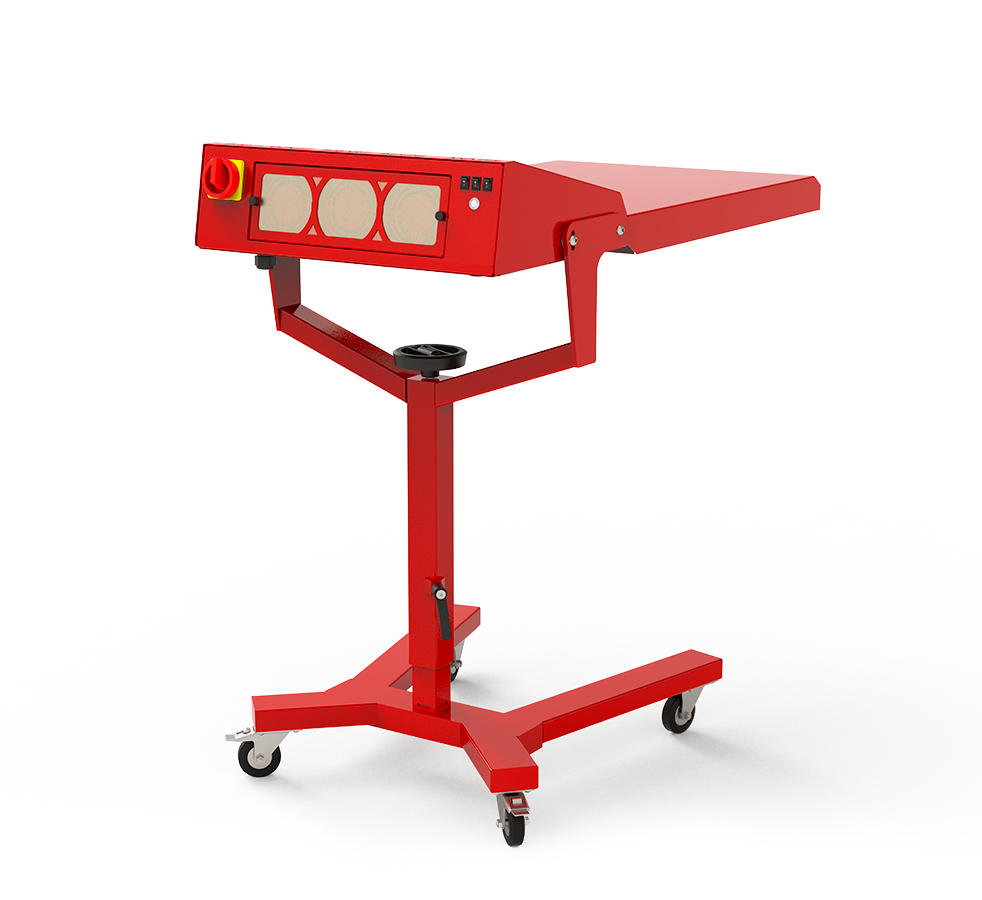

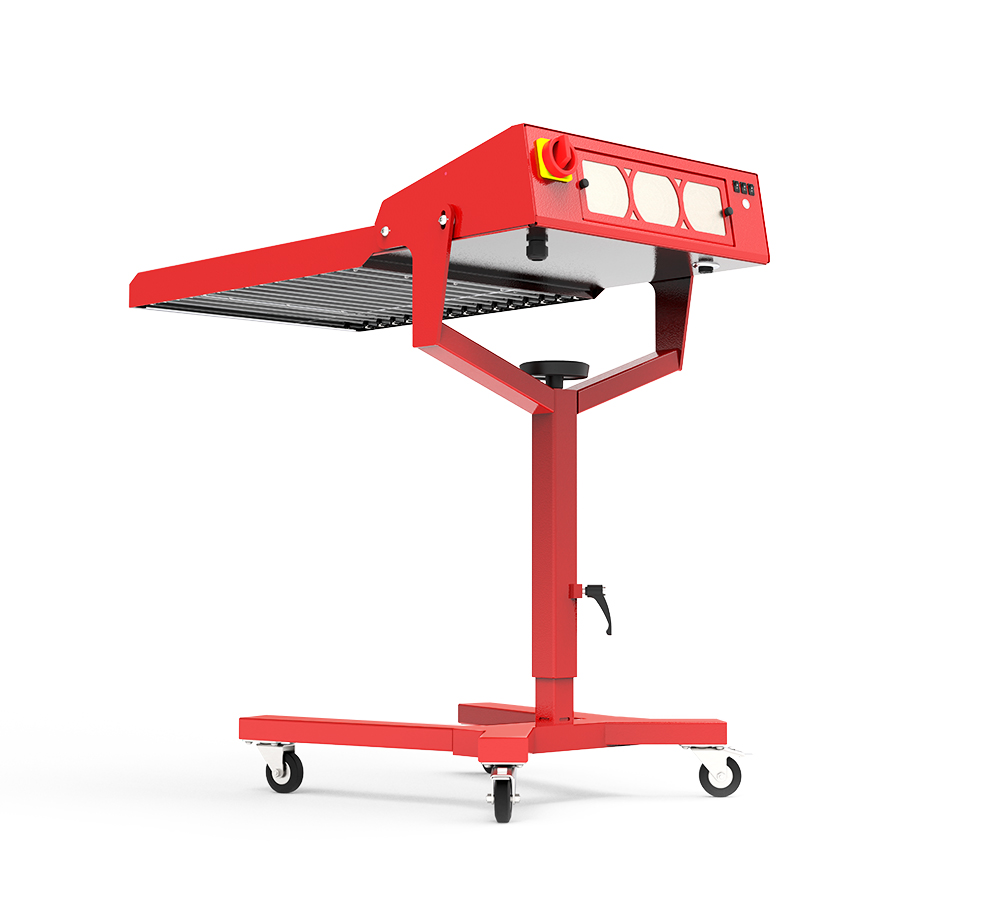

Comet Smart Flash Cure Unit
Two or three curing zones, depending on the size of the flash
Built-in temperature sensor allows you to program your desired curing temperature
Compatible with Anatol automatic presses, or add the optional Smart Box (see below) for use with a manual press
Models available with 16” x 18”, 20” x 24” and 20” x 28” curing areas

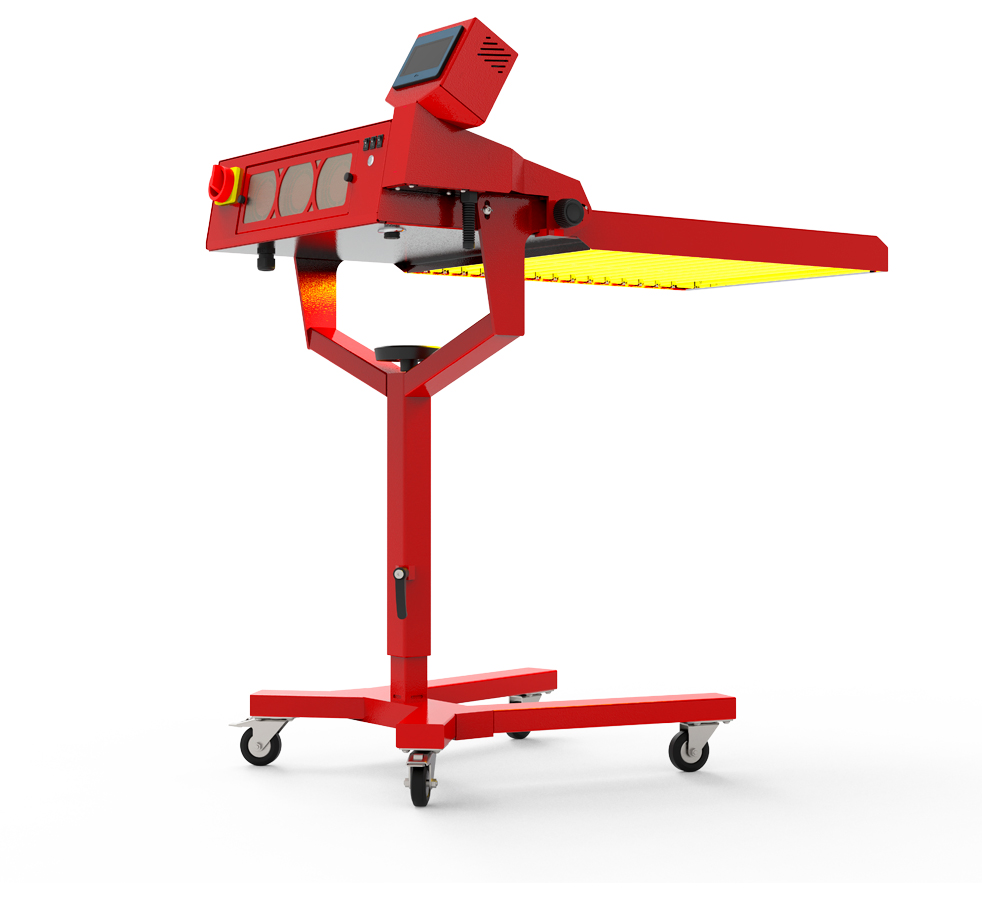

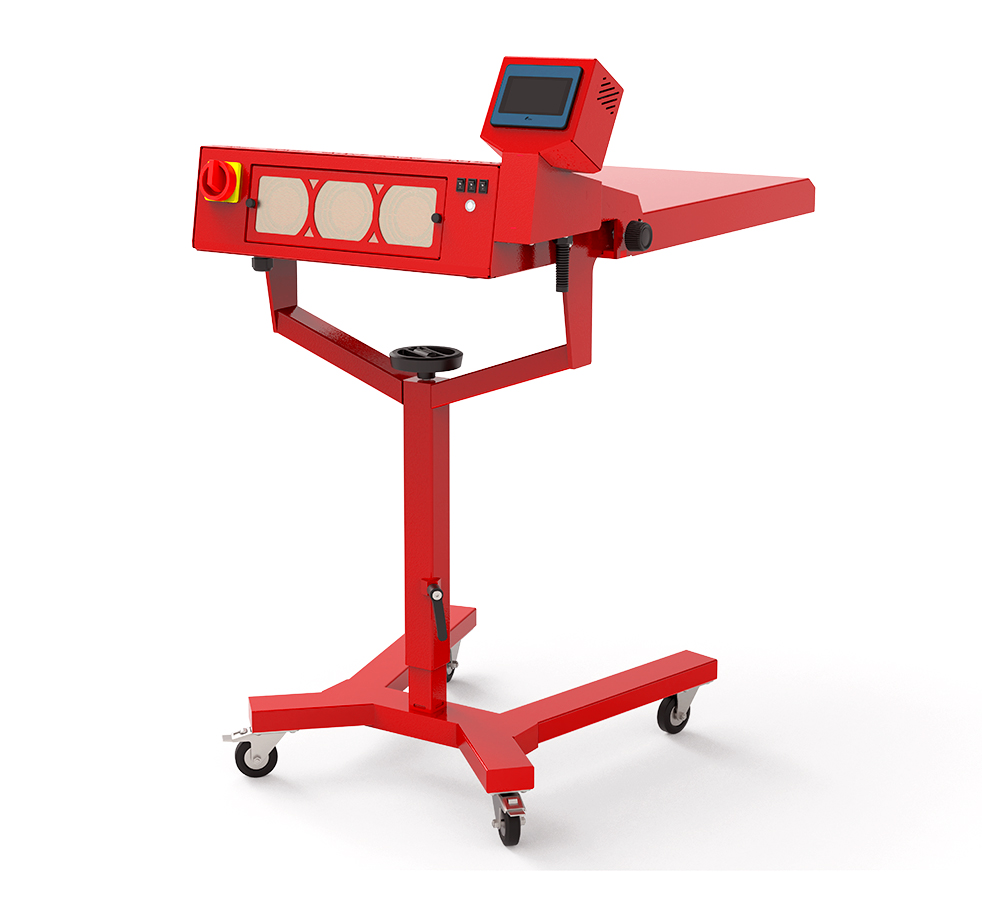

To use the Comet Smart flash cure unit with a manual press, add the optional Smart Box.
Comet Smart Description
Program your desired curing time and temperature for more effective flash curing.
Anatol’s Comet Smart flash cure unit gives you the power and efficiency of quartz flashing, plus the ability to set a desired curing temperature with its built-in temperature sensor. Program your curing temperature from the touchscreen of your Anatol automatic screen printing press, or from the optional Smart Box onboard touchscreen control panel (for use with manual presses). The Comet Smart will heat up to and maintain your desired temperature for your set time, reducing the chances of scorching or burning shirts. Like all flashes in the Comet series, the quartz lamps will automatically and deactivate, so they’re only on when you need them to be – saving electricity compared to infrared flash cures which are always on. The Comet Smart is available in three different curing areas – 16″ x 18″, 20″ x 24”, and 20″ x 28″.
Features
Take more control over your flash cure settings with the Comet Smart.
- Set your desired flash time and temperature from the touchscreen of your Anatol automatic screen printing press, or from the optional Smart Box onboard touchscreen control panel (for use with manual presses).
- Temperature sensor allows you to set your flash temperature for more effective curing, and reduces the chances of scorching or burning shirts.
- Pallet sensor detects when a shirt is under the flash for automatic activation/deactivation – so the lamps are only “on” whenever necessary; reducing energy when compared to infrared flashes which are always on.
- Quartz lamps heat up and cool down quickly.
- Multiple curing zones – two or three zones depending on the size of the flash (see Specifications).
- Available on a height-adjustable floor stand for use with both Anatol automatic and manual screen printing presses.
Comet Smart Specifications
| COMET LIGHT SIZE |
NUMBER OF LAMPS |
NUMBER OF CURING ZONES | HEAT FLUX DENSITY | ELECTRICAL REQUIREMENTS* |
|---|---|---|---|---|
| 16”x 18” 46.0х96.9cm (52.3×96.9cm)** |
9 Lamps | 2 zones (Zone I -6 lamps, Zone II – 3 lamps) |
4.47 W/cm2 (28.87 W/in2) |
50/60 Hz, 9kW, 1 Ph, 208-240V, 43.3A 3 Ph, 208V, 26A 3 Ph, 400V, 14A |
| 20”x 24” 58.0×110.4cm (64.3×110.4cm)** |
10 Lamps | 2 zones (Zone I -6 lamps, Zone II – 4 lamps) |
3.8 W/cm2 (24.53 W/in2) |
50/60 Hz, 12kW, 1 Ph, 208-240V, 61A 3 Ph, 208V, 38A 3 Ph, 400V, 22A |
| 20”x 28” 58.0×120.0cm (64.3×120.0cm)** |
15 Lamps | 3 zones (Zone I -5 lamps, Zone II – 5 lamps, Zone III – 5 lamps) |
4.9 W/cm2 (31.61 W/in2) |
50/60 Hz, 18.75kW, 1 Ph, 208-240V, 91A 3 Ph, 208V, 53A 3 Ph, 400V, 28A |
| * The maximum power consumption is calculated for all lamps operating at maximum power ** The dimensions in parentheses mean are the dimensions with the electrical box included |
||||
