NEW

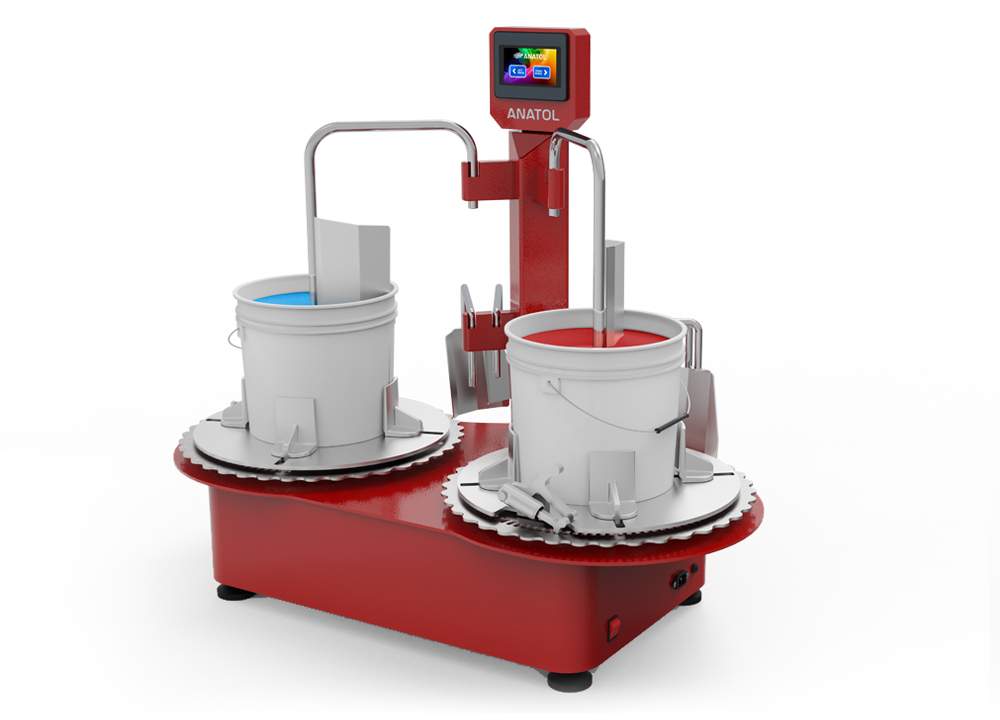

Formulator Double Screen Printing Ink Mixer

Formulator Double screen printing ink mixer accepts two containers at a time, from one quart up to six gallons each

– Independent control of the right and left mixing tables (mixing speed, time and direction)

– Set of six easy-to-clean, stainless steel mixing blades included: quart (x2), gallon (x2), 6-gallon (x2)

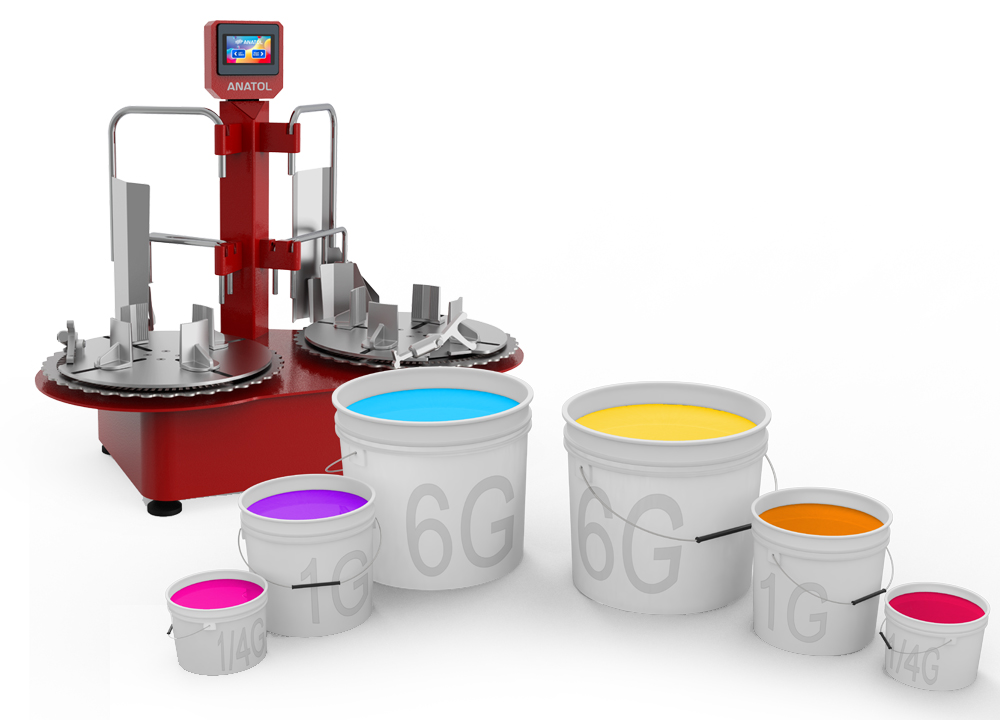

– Accepts the full range of U.S and international container sizes including
1 quart, 1 gallon, 6 gallons and all sizes in between (2 to 22.7 liters).

Cotizar aquí
  • Description
  • Standard Features
  • Specifications
  • Downloads

Description

An ink mixer is a vital piece of equipment in a professional screen printing shop. The Anatol Formulator Double Screen Printing Ink Mixer is ideal for mixing plastisol or water-based inks, for adding pigments such as glitters and fluorescents to bases, and for ensuring thorough blending of reducers and other modifiers. The self-centering feature automatically adjusts the Formulator to hold a wide variety of ink containers , from 1 quart up to 6 gallons, two containers at a time! The mixer’s special blade configuration with «lift and roll» movement provides gentle, thorough mixing without splash-up or air bubbles, and prevents ink from settling in the sides or bottom of the container. The Formulator offers fixed and variable speed options, and can rotate either clockwise or clockwise.

Standard Features

Construction

  • Variable speed AC electric motor
  • Heavy-duty steel construction
  • Self-centering clamp
  • Easily-adjustable touchscreen angle for convenient access

Operation

  • Easy-to-use touchscreen control panel
  • Change mixing direction (clockwise, counterclockwise)
  • Quick and easy changeover for different blade sizes
  • Set mixing speed, time and direction and quickly save and recall up to 6 different programs

Ink Mixer Double Specifications

MODEL WEIGHT INK VOLUME OUTER DIMENSIONS WXDXH ELECTRICAL REQUIREMENTS
DOUBLE MIXER 207lbs
(94 kg)
up 1/4G (0.95L) x2
to 6G (22.7L) x2
38.2” x 26.1” x 33.4”
970mm x 663mm x 847.5 mm
1 Phase, 110V, 15A
1 Phase 208-240V, 13A
Brochure
Download
Cerfificación y garantía
Two-Year Limited Warranty

Every effort has been made to ensure the accuracy of the promotional information included in this brochure. Specifications are subject to change. Anatol Equipment Manufacturing Co. and its subsidiaries, if any, expressly disclaim any liability for damages, consequential or incidental, resulting from the purchase, transportation, installation, or use of any products based upon information contained within this brochure. Any rights or remedies are limited solely to those provided in writing by Anatol Equipment Manufacturing Co. at the time of sale.

Download
