Description

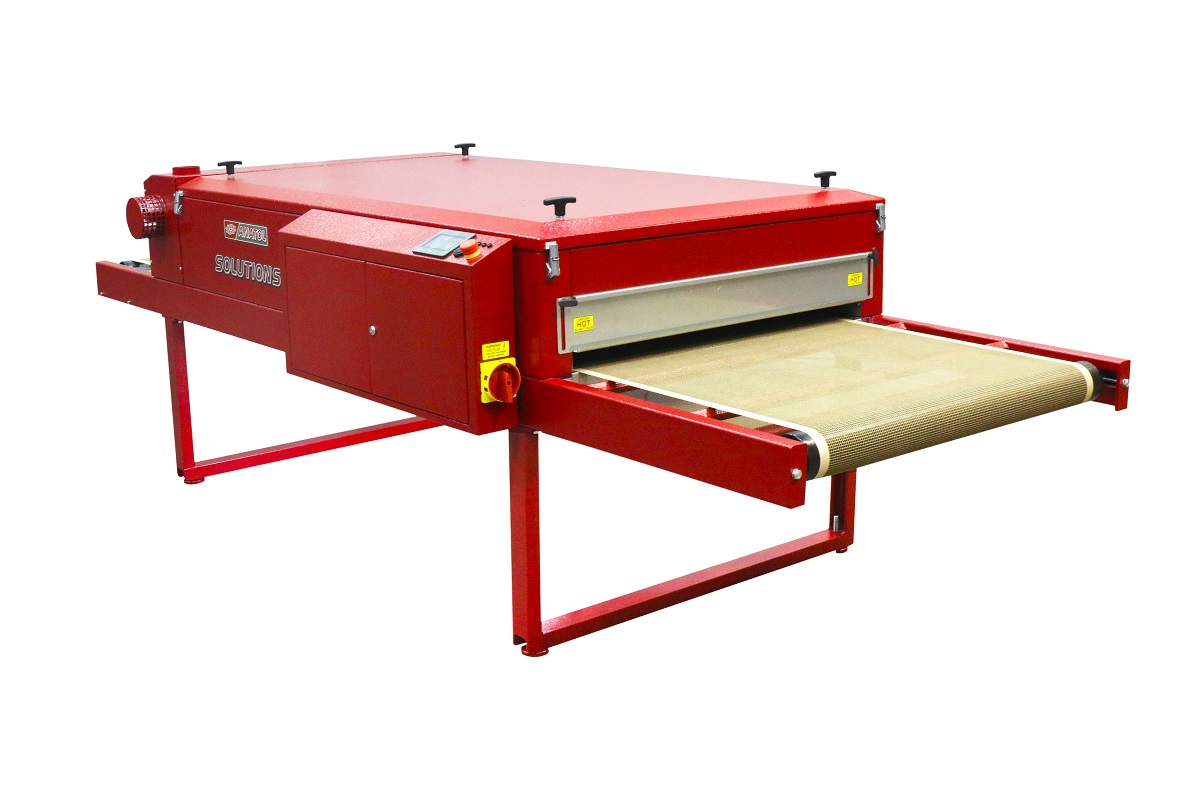

The Anatol Solutions Electric Conveyor Dryer is your key to flawless curing when gas isn’t an option! We designed this dryer for t-shirt and textile printing. It uses the latest technology, is easy to operate, and affordable. Elevate your print quality and boost production with Solutions — the choice of professionals worldwide!
Why Solutions is Your Perfect Choice:
- Flawless Curing: More ceramic heating panels ensure even heat across the chamber, delivering perfect results every time.
- User-Friendly Controls: Up to 9 programmable settings and a modern touchscreen make operation fast and intuitive.
- Time-Saving Efficiency: Automatic cool-down after curing speeds up your workflow, freeing you to focus on creativity.
- Versatile for Any Business: We offer six models. They range from 24” belts with 4’ heat chambers to 60” belts with 10’ chambers, fitting both small shops and large-scale operations.
- Built to Last: Double-wall construction with thermal insulation ensures durability and energy efficiency.
- Cost-Effective Operation: Ceramic heating elements reduce maintenance costs, saving you money without compromising quality.
Take Your Printing to the Next Level!
The Anatol Solutions Electric Conveyor Dryer isn’t just equipment — it’s an investment in your business’s success. This dryer has advanced technology and a two-year limited warranty. It helps you create vibrant, long-lasting prints you can trust. Order your Solutions dryer today and discover new opportunities to elevate your brand.
Standard features
Control Panel
- Digital control panel
- Solid-state variable belt speed control, set in ft/min or meters/min
- Programmable temperature controller (accuracy: +/- 1º)
- Automatic controlled start up and cool down mode
- Reversible belt direction
Construction
- Industrial grade AC motor
- Double wall insulation with galvanized interior
- Heavy-duty multi-section construction
- Air-cooled control cabinet
- Stainless steel slide out filters (larger models only)
Heating System
- 12-48 ceramic heating elements
- Adjustable heat panels (raise or lower)
Belt
- Adjustable infeed/outfeed openings
- Teflon-coated fiberglass belt
- Heavy-duty conveyor rollers
Solutions Specifications
| Model # | Belt Width | Heat Chamber |
Overall Length |
Smoke Hood Length |
Standard Infeed/Outfeed Length |
Wattage | Ceramic Elements |
Pieces Per Hour | Electrical Requirements |
|---|---|---|---|---|---|---|---|---|---|
| SED2404 | 24’’ 61cm |
4’0’’ 125 cm |
9’0’’ 275 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
5850 | 9 | 120-200 | 1PH 208-230V, 50/60 Hz, 5.85 kW, 29A 3PH 208-230V, 50/60 Hz, 5.85 kW, 17A |
| SED2404 | 24’’ 61cm |
4’0’’ 125 cm |
9’0’’ 275 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
7800 | 12 | 150-250 | 1PH 208-230V, 50/60 Hz, 7.8 kW, 38A 3PH 208-230V, 50/60 Hz, 7.8 kW, 22A |
| SED2406 | 24’’ 61cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
11700 | 18 | 200-350 | 1PH 208-230V, 50/60 Hz, 11.7 kW, 56A 3PH 208-230V, 50/60 Hz, 11.7 kW, 33A |
| SED3606 | 36’’ 92cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
15600 | 24 | 300-500 | 1PH 208-230V, 50/60 Hz, 15.6 kW, 75A 3PH 208-230V, 50/60 Hz, 15.6 kW, 44A |
| SED3610 | 36’’ 92cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
23400 | 36 | 550-800 | 3PH 208-230V, 50/60 Hz, 23.4 kW, 65A |
| SED4806 | 48’’ 122cm |
6’0’’ 185 cm |
11’0’’ 335 cm |
0’10’’ 25 cm |
2’6″/2’6″ 75cm/75cm |
23000 | 27 | 650-850 | 1PH 208-230V, 50/60 Hz, 17.5 kW, 85A 3PH 208-230V, 50/60 Hz, 17.5 kW, 49A |
| SED4810 | 48’’ 122cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
26000 | 42 | 700-950 | 3PH 208-230V, 50/60 Hz, 27.3 kW, 78A |
| SED6010 | 60’’ 152cm |
9’5’’ 287 cm |
19’5’’ 591 cm |
0’10’’ 25 cm |
5’0″/5’0″ 150cm/150cm |
31200 | 48 | 900-1200 | 3PH 208-230V, 50/60 Hz, 31.2 kW, 87A |
